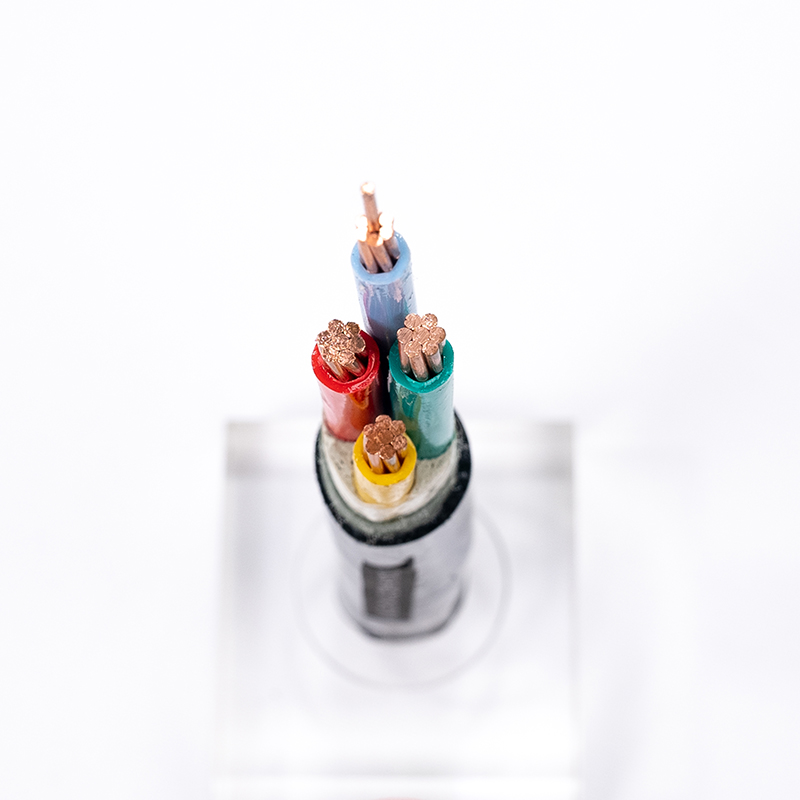

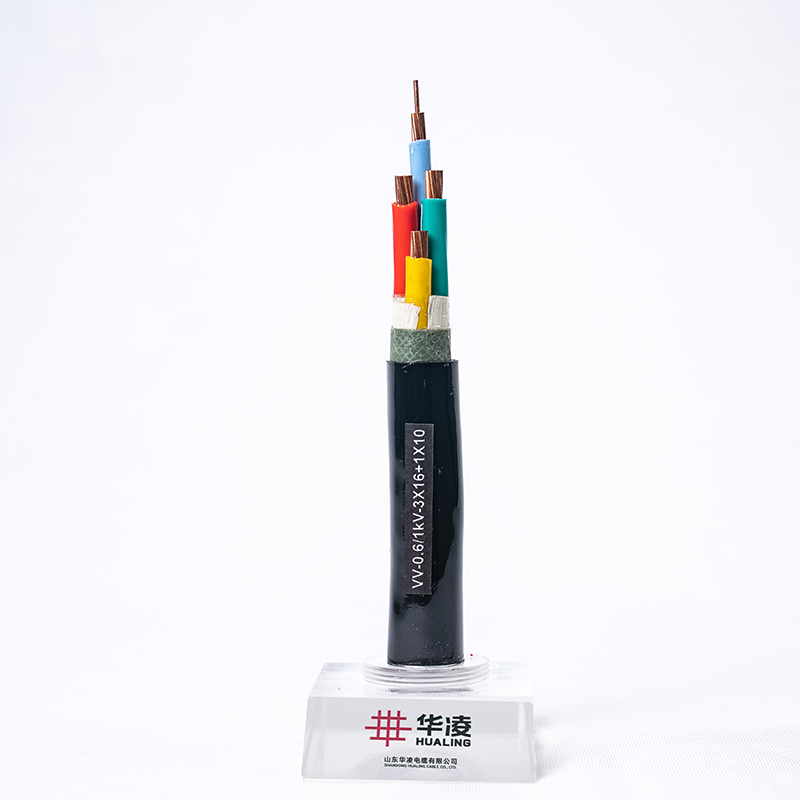

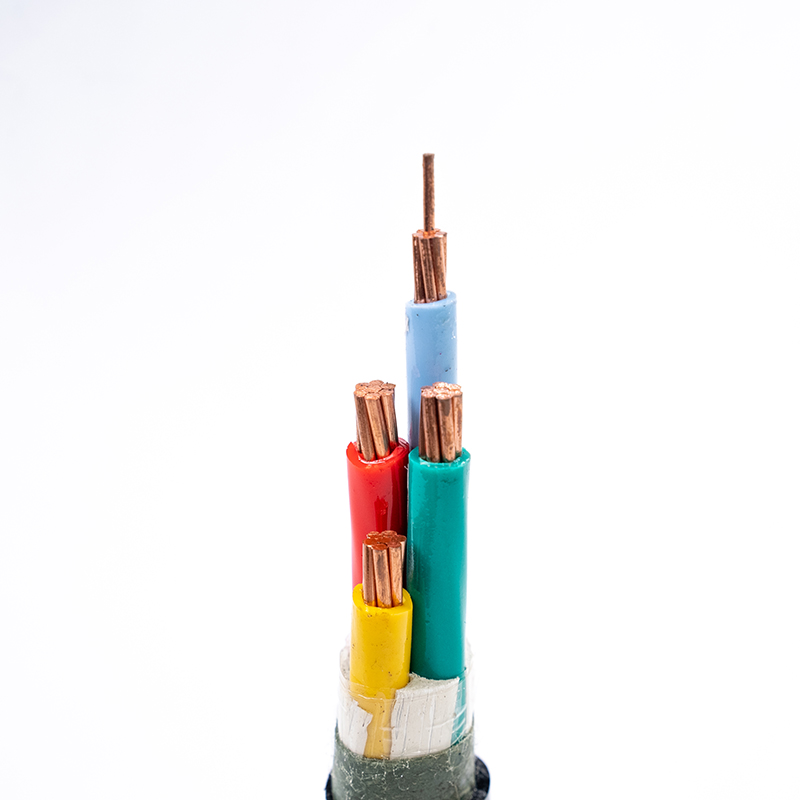

Low Voltage Power Cables

1. Excellent insulation performance: Using polyvinyl chloride (PVC) as the insulation material, it has good insulation performance and oil and acid alkali resistance.

2. Good flame retardant performance: The cable has a certain degree of flame retardant performance, which is not easy to catch fire or only limited to a certain range after ignition. It is particularly suitable for power distribution in fire emergency systems such as fire alarm, fire-fighting facilities, and emergency evacuation.

3. Easy laying: Cable laying and maintenance are both very convenient, suitable for various laying methods such as pipe laying, shallow trench laying, cable trench laying, tunnel laying, interlayer laying, supporting overhead laying, hanging overhead laying, etc.

4. Wide applicability: It can be used in transmission and distribution systems, as a carrier of electricity, especially suitable for high drop and vertical laying situations.

Contact Now E-Mail Telephone

Product Details

Cross-linked Polyethylene Insulated Power Cable with Rated Voltage of 0.6/1kV

1. Product Description

This product is a cross-linked polyethylene insulated power cable with a rated voltage of 0.6/1kV. It adopts cross-linked polyethylene as the insulating material, which possesses excellent electrical performance, heat resistance, and mechanical properties. The cable is suitable for power transmission and distribution systems with a rated voltage of 0.6/1kV or below.

2. Executive Standard

GB/T 12706.1-2020 "Extruded Insulation Power Cables and Accessories for Rated Voltages from 1kV (Um=1.2kV) to 35kV (Um=40.5kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV (Um=3.6kV)"

3. Technical Parameters

Model (Copper Core/Aluminum Core)	Name	Number of Cores	Conductor Cross-Sectional Area (mm²)	Rated Voltage (kV)
YJV / YJLV	Cross-linked Polyethylene Insulated Polyvinyl Chloride (PVC) Sheathed Power Cable	1, 2, 3, 4, 5, 3+1, 3+2, 4+1	1.5 - 300	0.6/1
YJY / YJLY	Cross-linked Polyethylene Insulated Polyethylene or Polyolefin Sheathed Power Cable	1, 2, 3, 4, 5, 3+1, 3+2, 4+1	1.5 - 300	0.6/1
YJV62 / YJLV62	Cross-linked Polyethylene Insulated Stainless Steel Tape Armored PVC Sheathed Power Cable	1	1.5 - 300	0.6/1
YJV22 / YJLV22	Cross-linked Polyethylene Insulated Galvanized Steel Tape Armored PVC Sheathed Power Cable	2, 3, 4, 5, 3+1, 3+2, 4+1	2.5 - 300	0.6/1
YJY63 / YJLY63	Cross-linked Polyethylene Insulated Stainless Steel Tape Armored Polyethylene or Polyolefin Sheathed Power Cable	1	1.5 - 300	0.6/1
YJY23 / YJLY23	Cross-linked Polyethylene Insulated Galvanized Steel Tape Armored Polyethylene or Polyolefin Sheathed Power Cable	2, 3, 4, 5, 3+1, 3+2, 4+1	2.5 - 300	0.6/1
/ / YJRV	Cross-linked Polyethylene Insulated Flexible PVC Sheathed Power Cable	1, 2, 3, 4, 5, 3+1, 3+2, 4+1	1.5 - 300	0.6/1

Supplementary Notes

For flame-retardant cables, "ZA/ZB/ZC" shall be added before the original model, e.g., ZA-YJV, ZC-YJRV.

For low-smoke and halogen-free flame-retardant cables, "WDZA/WDZB/WDZC/WDZ" shall be added before the original model, e.g., WDZA-YJY, WDZ-YJY23.

For fire-resistant cables, "N-" shall be added before the original model, e.g., N-YJV22, N-YJV. For flame-retardant and fire-resistant cables, "ZAN/ZBN/ZCN" shall be added before the original model, e.g., ZAN-YJV22, ZBN-YJV.
