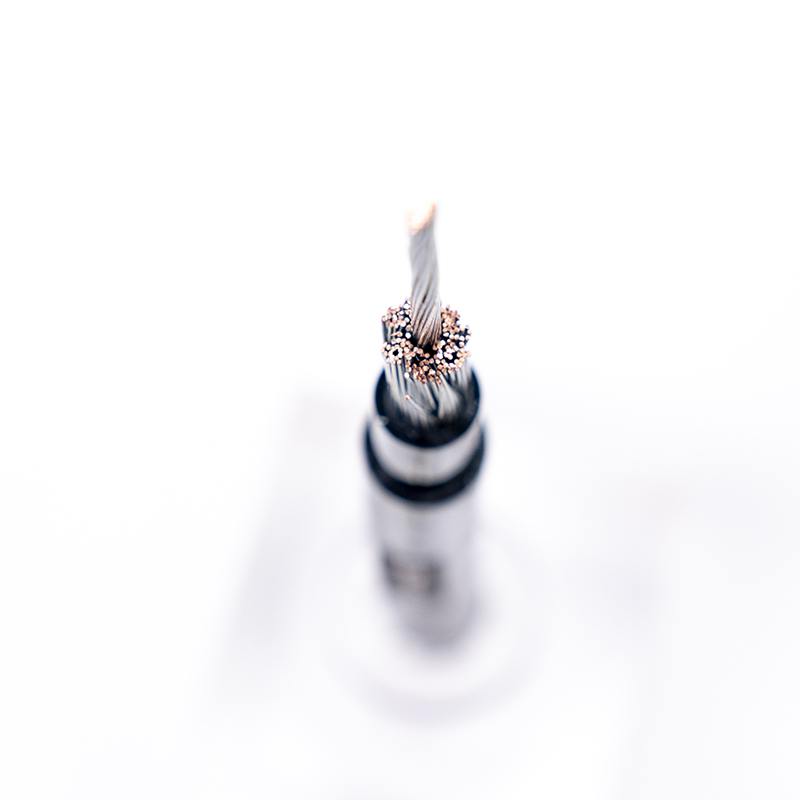

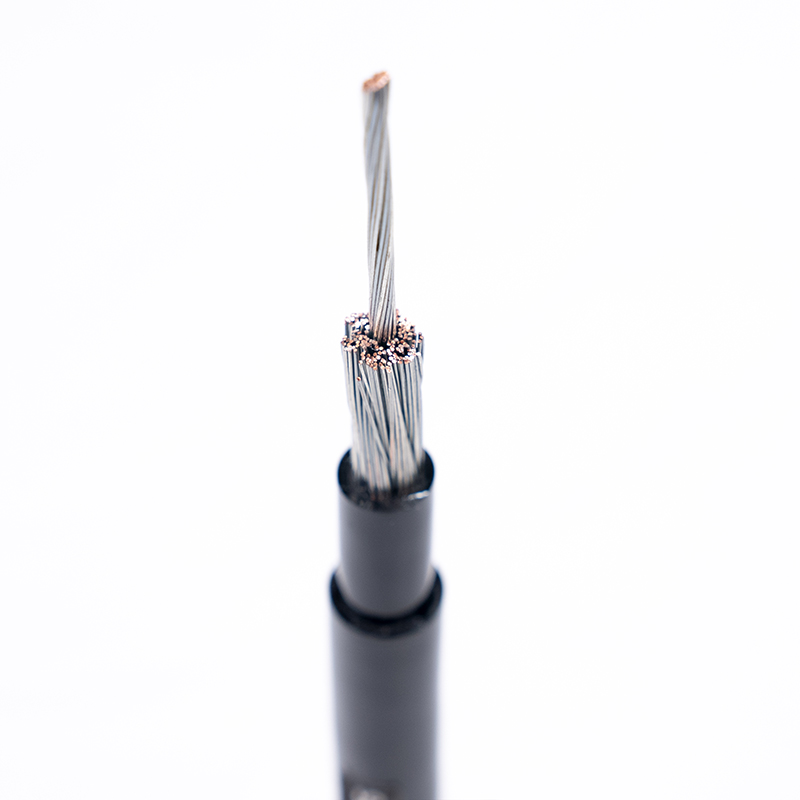

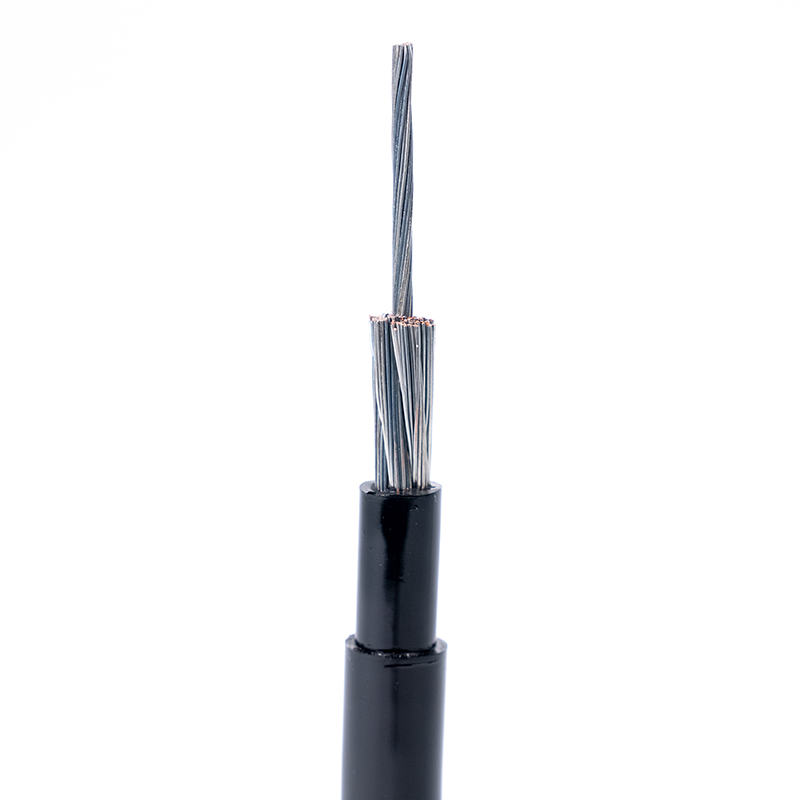

Solar Photovoltaic Cable
It has the characteristics of extreme temperature resistance (-40 ℃ to 125 ℃), UV aging resistance, efficient conductivity (copper core purity ≥ 99.99%), and chemical corrosion resistance. Its irradiated cross-linked polyolefin material ensures a 30-year outdoor service life, with a current carrying capacity 37% higher than ordinary wires. The red and black dual color design meets international safety standards

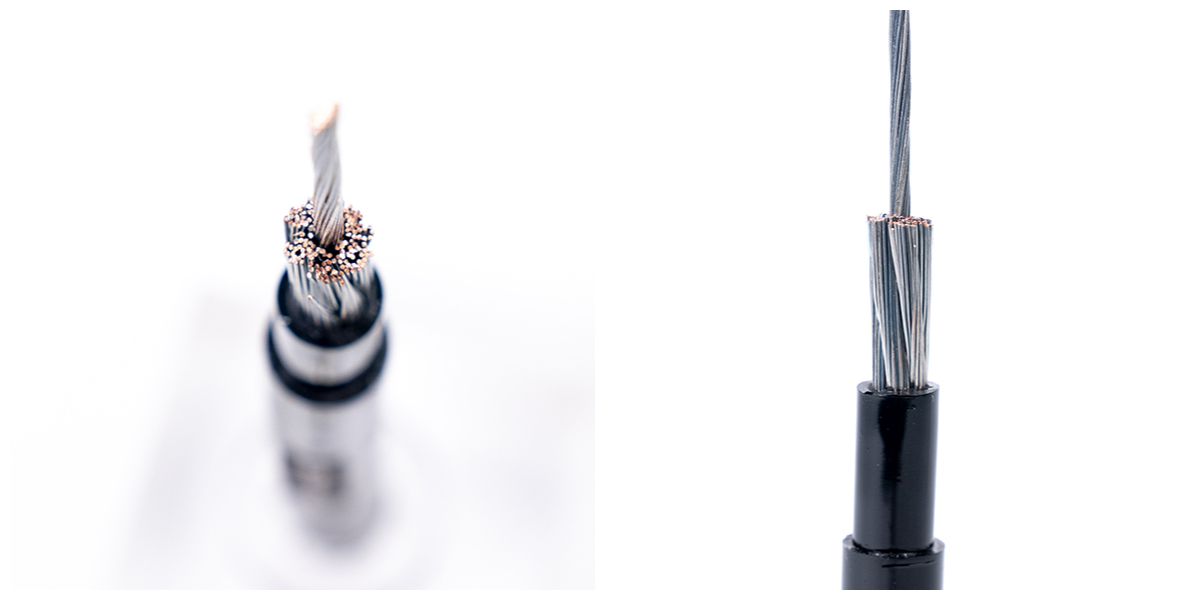

Product Description
This is a single-core flexible cable (wire) suitable for DC side use in photovoltaic systems with a maximum DC voltage of 1.8kV. It is designed for use under Class II safety rating. The maximum ambient temperature for cable operation is 90℃, and multiple cables can be used in parallel.
Executive Standards
2PfG 1169/08.2007
EN50618:2014
Technical Parameters
• The DC resistance of the conductor meets the requirements of the 2PfG 1169/08.2007 standard.
• Both the cable insulation and sheath are made of irradiated cross-linked polyolefin material.
• The thermal life assessment result of the cable shows a service life of not less than 25 years.
• The finished cable has excellent resistance to moisture, ultraviolet rays, and ozone erosion, and can withstand a wider range of temperature changes.
• The cable has excellent penetration resistance.
Product Characteristics
• Rated voltage: AC U0/U 0.6/1kV; Maximum allowable DC voltage 1.8kV (line-to-line).
• Temperature range: Ambient temperature: -40℃ to 90℃.
• Maximum temperature of the conductor (TI): 120℃.
• Expected service life: 25 years.
• Allowable short-circuit temperature: 200℃ for 5 seconds.
• The bending radius of the cable is not less than 4 times the outer diameter of the cable.

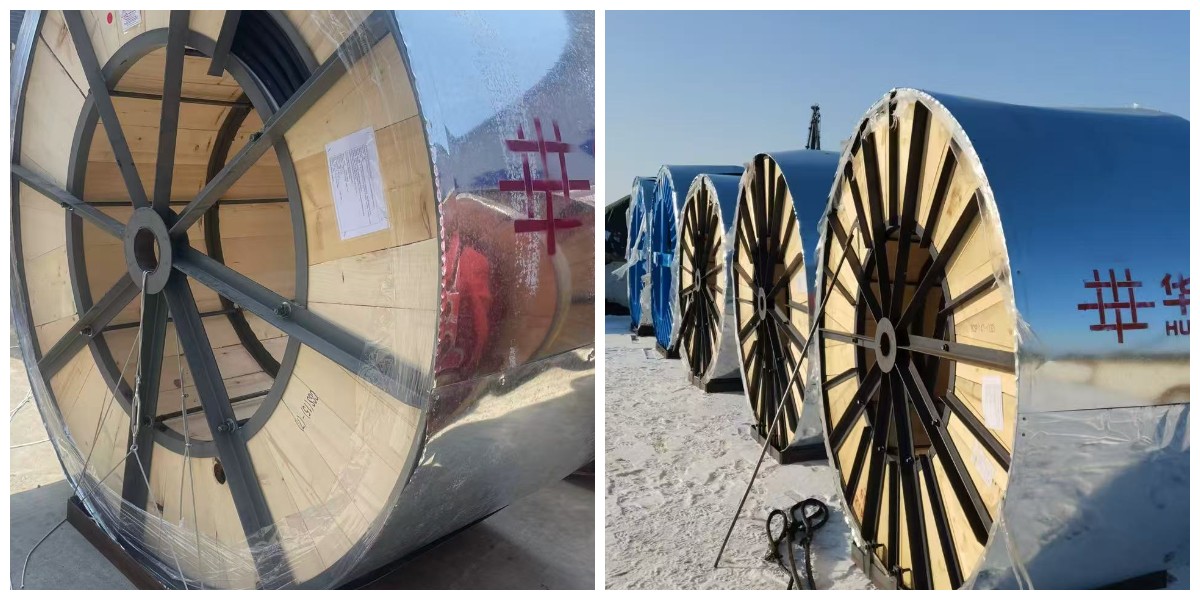

Packaging and Shipping
