Cable Buying Made Simple: A Practical Guide for International Buyers
Buying cable for an international project can feel complicated — different standards, endless model numbers, and technical terms in every quotation. This guide breaks the process into plain language, so you can specify, compare, and order the right cable with confidence.

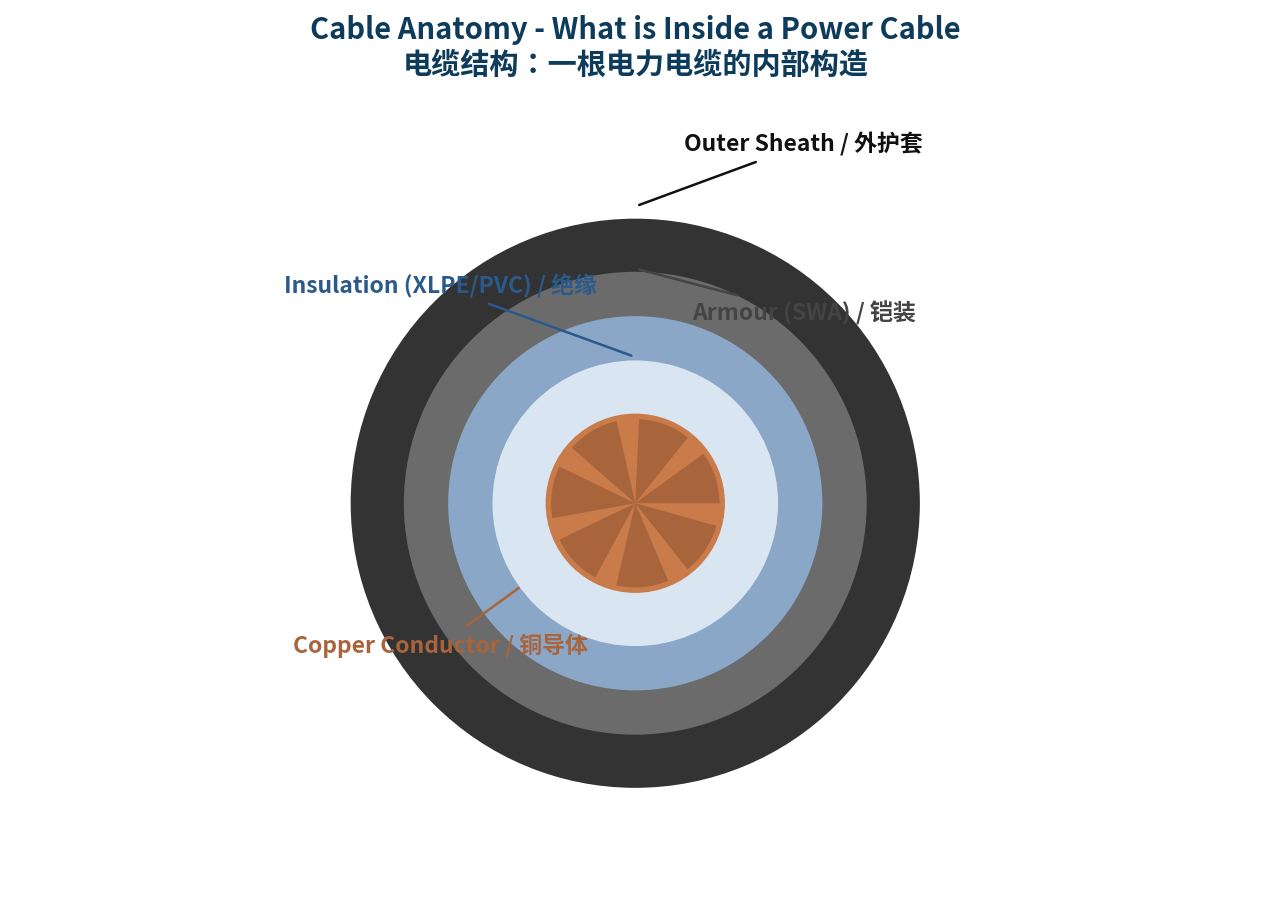

1. What Is Inside a Power Cable?
A power cable is basically several layers working together to move electricity safely from point A to point B. Understanding these layers helps you read a quotation and ask the right questions.
| Layer | Function | Common Materials |
|---|---|---|
| Conductor | Carries the electric current | Copper (Cu) or Aluminum (Al) |
| Insulation | Prevents short circuits and leakage | XLPE, PVC, EPR |
| Armour (optional) | Protects cable from mechanical damage | Steel Wire (SWA) or Steel Tape (STA) |
| Outer Sheath | Protects against moisture, chemicals, UV | PVC, PE, LSZH |
Quick Tip: If the cable will be buried or pulled through ducts, choose an armoured version (SWA/STA). For indoor tray installation, a non-armoured cable is usually enough.

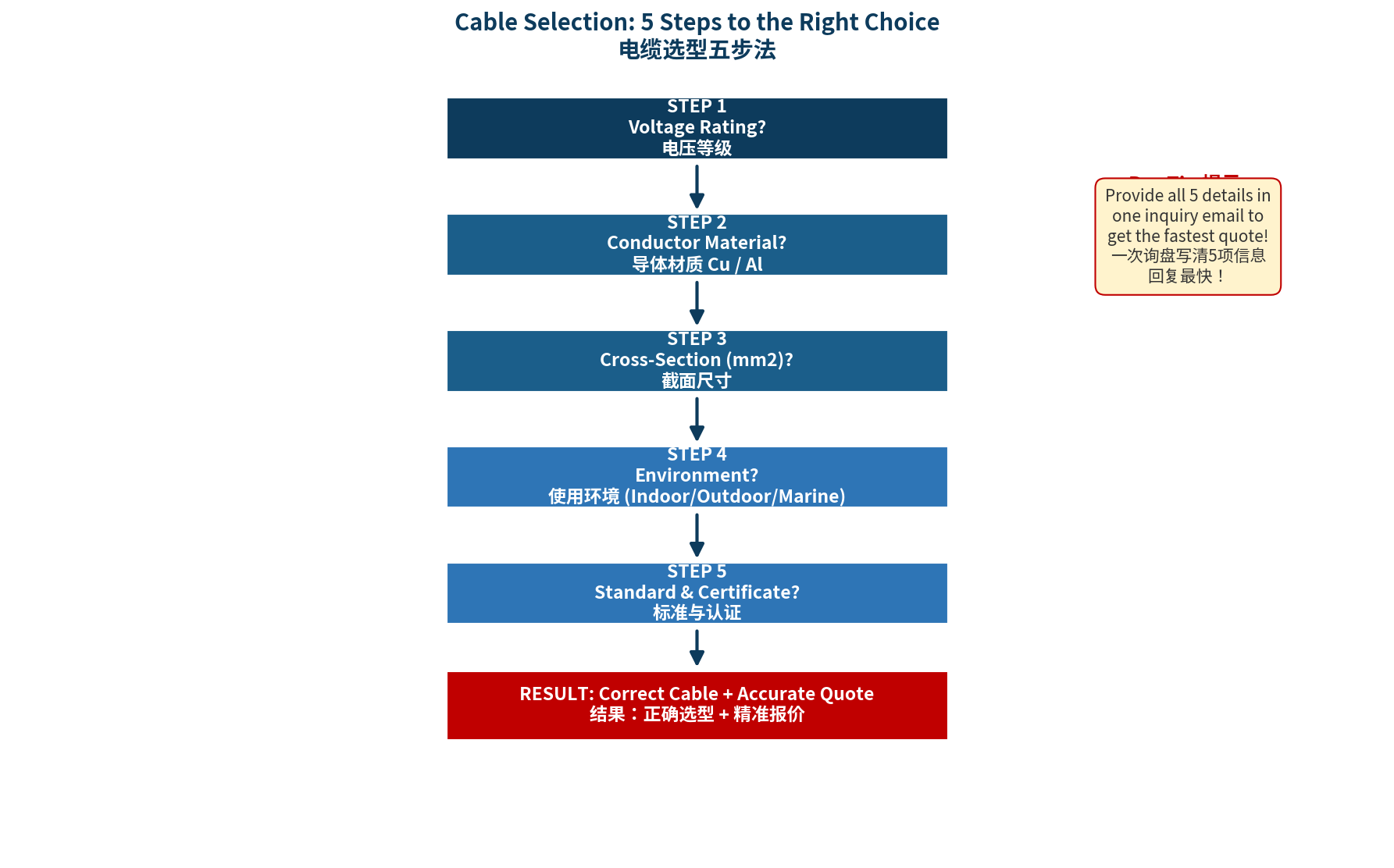

2. Five Steps to Choose the Right Cable
You do not need to be a cable engineer to make a good choice. Answer these five questions, and your supplier can recommend the right product quickly.
Voltage Rating: Is the system low voltage (0.6/1 kV), medium voltage (6/10 kV or 8.7/15 kV), or high voltage?
Conductor Material: Copper has better conductivity and flexibility; aluminum is lighter and lower cost.
Cross-Section (mm²): This determines how much current the cable can carry safely. If you are unsure, share the load current and installation method with the supplier.
Environment: Indoor/ outdoor? Buried? Marine/ offshore? Fire-resistant requirements?
Standard & Certificate: IEC, BS, EN, ASTM, CCS, DNV, UL — confirm what your project or local authority requires.
3. Common Cable Types and Their Typical Uses
Knowing the common names helps you communicate faster with Chinese suppliers. Below are cable families that Hualing Cable produces for export markets.
| Cable Type | Typical Use | Common Models |
|---|---|---|
| LV Power Cable | Building power distribution, machinery connection | YJV, YJV22, YJV32, VLV |
| Marine Cable | Ships, offshore platforms | CEFR, CJPJ, CJPJR |
| Solar PV Cable | Solar power plants, rooftop systems | PV1-F, H1Z2Z2-K |
| Control Cable | Signal and control circuits | KVV, KVVP, KVVR |
| Instrument Cable | Process instrumentation, twisted pairs | DJYPVP, ICAT pairs |
| Flexible Rubber Cable | Mobile equipment, construction sites | H07RN-F, YCW, SOOW |
4. Why Certificates Matter
For export projects, certificates are often the gatekeepers. A quotation without the right certificate may be useless, even if the price is attractive. Always confirm which standard or approval is mandatory before asking for a price.
IEC standards (e.g., IEC 60502, IEC 60092) are widely accepted in Asia, Africa, the Middle East, and South America.
CE marking / CPR is required for most EU construction projects.
Marine approvals (CCS, DNV, Lloyd's, ABS, BV) are mandatory for shipboard cables.
UL / cUL may be required for North American markets.
Practical Advice: When in doubt, ask your end customer or project consultant which certificate is required, and share that with the cable supplier at the quotation stage.

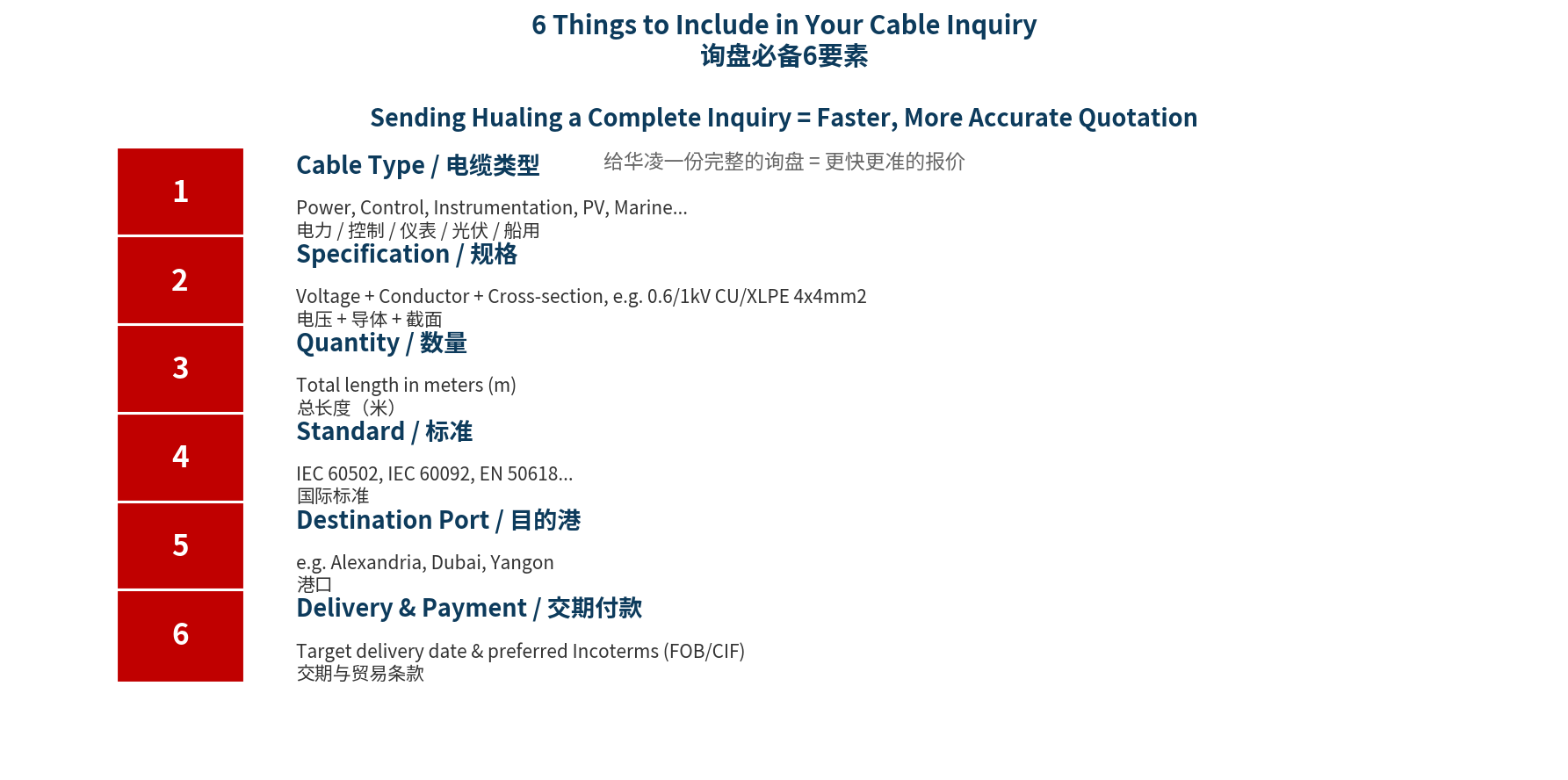

5. What to Include in Your Cable Inquiry
The more complete your inquiry, the faster and more accurate the quotation. Here is a simple checklist you can copy into your email.
For example, instead of writing “Please quote 4×4 mm² cable,” write:
“Request quotation for 500 meters of YJV32 4×4 mm² 0.6/1 kV copper/XLPE/SWA/PVC power cable, IEC 60502-1, FOB Qingdao, delivery to Alexandria.”
6. About Shandong Hualing Cable
Shandong Hualing Cable Co., Ltd. is a national high-tech enterprise specializing in nuclear power cables, ultra-low-temperature cables, new energy cables, marine cables, infrastructure power cables, and automotive wire harnesses. With 300+ automated production lines and certifications including ISO 9001 and IATF 16949, Hualing serves customers across the Middle East, Central Asia, Southeast Asia, Africa, and beyond.
Need a Cable Quotation?
Send us your cable specification — our technical and export teams will reply within 24 hours.
