Long life cable

‌Conductor‌

Use high-purity annealed copper conductor, in line with GB/T 3956 standard, single wire can be tinned or non-tinned, ensuring low resistance and high conductivity.

‌Insulation Design‌

Double-layer co-extruded composite insulation structure, the inner layer is cross-linked polyethylene (XLPE), the outer layer is halogen-free low-smoke flame-retardant polyolefin, taking into account both electrical performance and flame retardancy. The heat resistance and mechanical strength are improved through the radiation cross-linking process, and the insulation life is significantly extended

Contact Now E-Mail Telephone

Product Details

Product Description

This product is suitable for power distribution networks with a rated voltage of 0.6/1kV or below, as well as industrial installations. It can be used in all densely populated public places (including shopping malls, theaters, railway stations, airports, etc.), important power distribution lines, and building wiring.

Executive Standard

JG/T 442-2014 Power Cables with Rated Voltage of 0.6/1kV, Double-Layer Co-Extruded Insulation, Irradiation Cross-Linking, Halogen-Free, Low-Smoke and Flame-Retardant. This standard sets detailed and strict regulations on the cable’s structural dimensions, electrical properties, mechanical properties, and other aspects.

Product Models

Model	Name
WDZ-GYJSYJ(F)	Halogen-Free, Low-Smoke, Flame-Retardant Power Cable with Copper Conductor, Double-Layer Co-Extruded Insulation (Irradiation Cross-Linked Polyethylene and Polyolefin), and Irradiation Cross-Linked Polyolefin Sheath
WDZN-GYJSYJ(F)	Halogen-Free, Low-Smoke, Flame-Retardant and Fire-Resistant Power Cable with Copper Conductor, Double-Layer Co-Extruded Insulation (Irradiation Cross-Linked Polyethylene and Polyolefin), and Irradiation Cross-Linked Polyolefin Sheath
WDZ-GYJSYJ(F)23	Halogen-Free, Low-Smoke, Flame-Retardant Power Cable with Copper Conductor, Double-Layer Co-Extruded Insulation (Irradiation Cross-Linked Polyethylene and Polyolefin), Irradiation Cross-Linked Polyolefin Sheath, and Double Steel Tape Armoring
WDZN-GYJSYJ(F)23	Halogen-Free, Low-Smoke, Flame-Retardant and Fire-Resistant Power Cable with Copper Conductor, Double-Layer Co-Extruded Insulation (Irradiation Cross-Linked Polyethylene and Polyolefin), Irradiation Cross-Linked Polyolefin Sheath, and Double Steel Tape Armoring
WDZ-GYJSYJ(F)33	Halogen-Free, Low-Smoke, Flame-Retardant Power Cable with Copper Conductor, Double-Layer Co-Extruded Insulation (Irradiation Cross-Linked Polyethylene and Polyolefin), Irradiation Cross-Linked Polyolefin Sheath, and Fine Round Steel Wire Armoring
WDZN-GYJSYJ(F)33	Halogen-Free, Low-Smoke, Flame-Retardant and Fire-Resistant Power Cable with Copper Conductor, Double-Layer Co-Extruded Insulation (Irradiation Cross-Linked Polyethylene and Polyolefin), Irradiation Cross-Linked Polyolefin Sheath, and Fine Round Steel Wire Armoring
WDZ-GLHYJSYJ(F)63	Halogen-Free, Low-Smoke, Flame-Retardant Power Cable with Aluminum Alloy Conductor, Double-Layer Co-Extruded Insulation (Irradiation Cross-Linked Polyethylene and Polyolefin), Irradiation Cross-Linked Polyolefin Sheath, and Aluminum Alloy Tape Interlocked Armoring

The flame-retardant grades of WDZ and WDZN types are divided into four categories: Class A, Class B, Class C, and Class D.

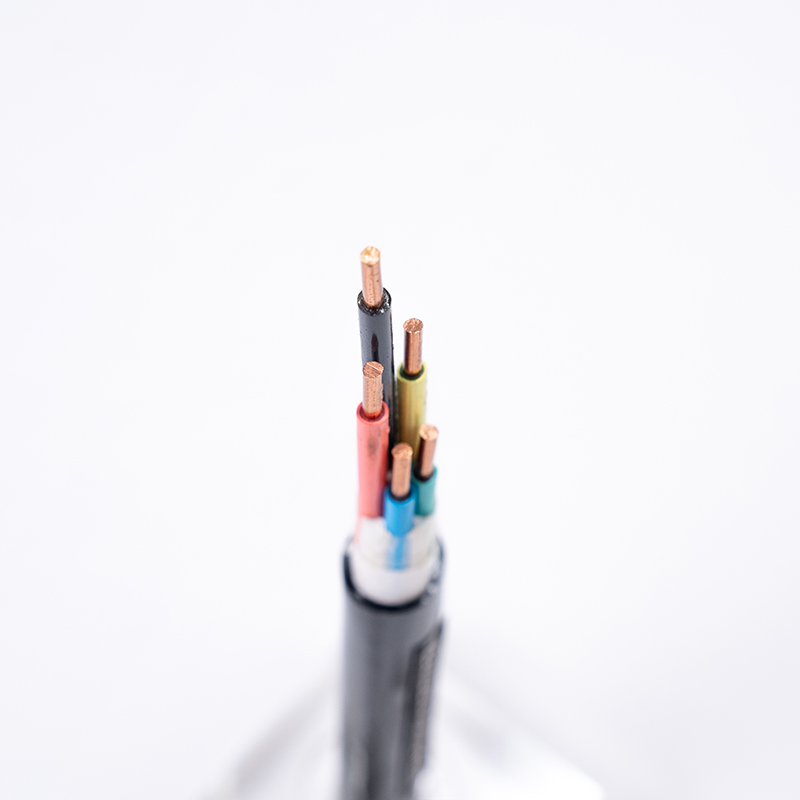

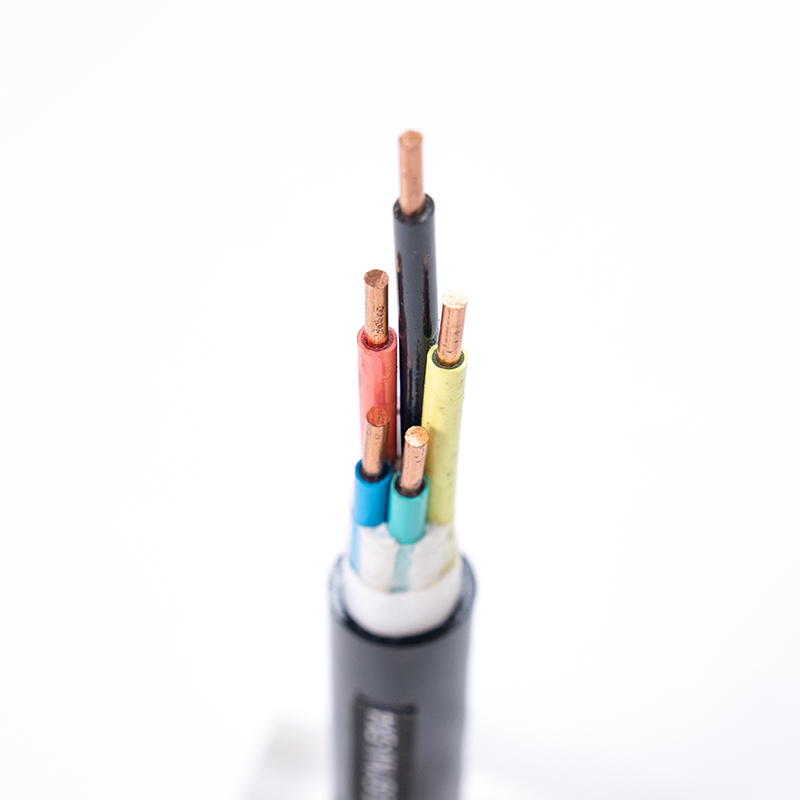

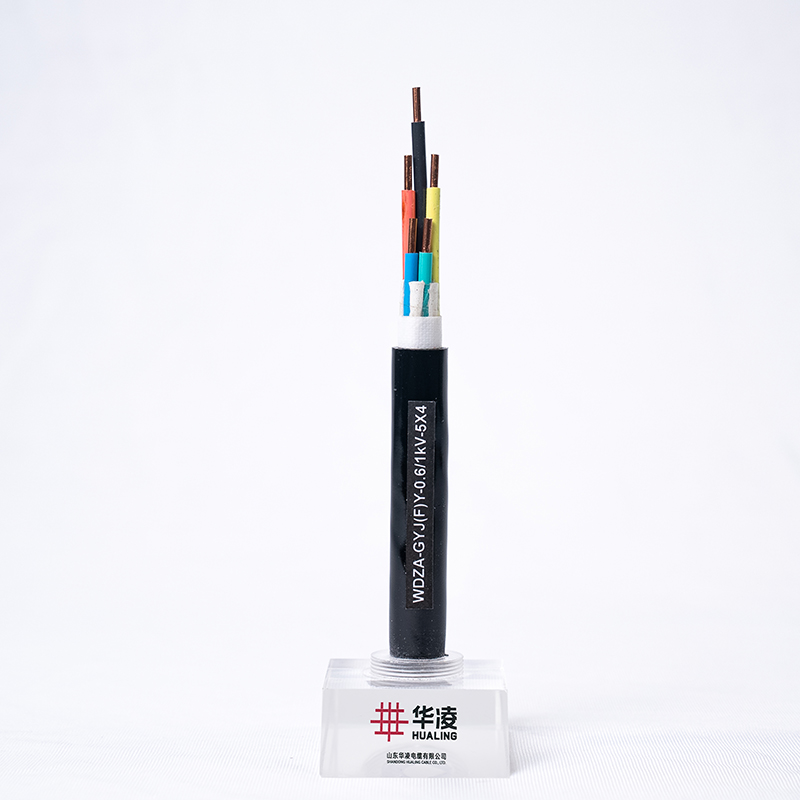

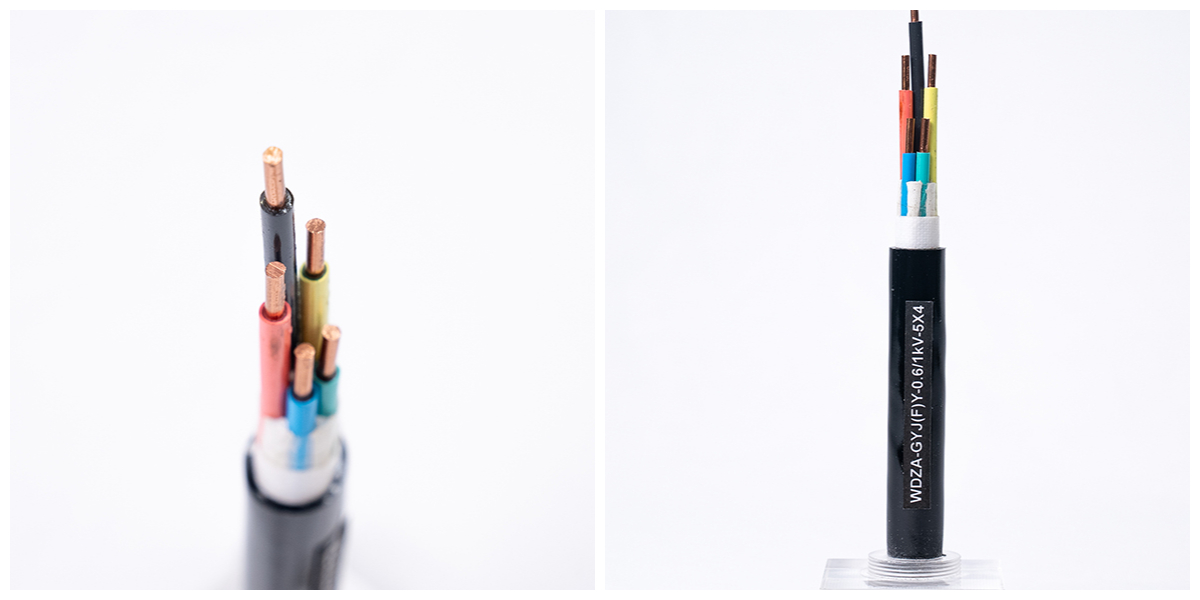

Long Life Cables

Product Specifications

Model	Number of Cores	Cross-Sectional Area (mm²)	Rated Voltage (kV)
WDZ-GYJSYJ(F), WDZN-GYJSYJ(F)	1, 2, 3, 4, 5	1.5 ~ 300	0.6/1
WDZ-GYJSYJ(F)23, WDZN-GYJSYJ(F)23	1, 2, 3, 4, 5	1.5 ~ 300	0.6/1
WDZ-GYJSYJ(F)33, WDZN-GYJSYJ(F)33	3+1, 4+1, 3+2	1.5 ~ 300	0.6/1
WDZ-GLHYJSYJ(F)63	1, 2, 3, 4, 5; 3+1, 4+1, 3+2	1.5 ~ 300	0.6/1

Product Characteristics

The service life can reach up to 81.3 years at 70℃ and 76.2 years at 85℃.

The product features halogen-free, low-smoke, flame-retardant, fire-resistant, non-toxic, long service life, high operating temperature, and large current-carrying capacity.

The low-smoke performance of the cable meets the requirement of light transmittance ≥ 60%.

The halogen-free performance of the cable meets the following requirements: pH ≥ 4.3, electrical conductivity ≤ 10μS/mm, toxicity index ≤ 0.5%, and fluorine content ≤ 0.1%.

Adopting double-layer co-extrusion technology: the inner insulation uses irradiation cross-linked polyethylene to enhance the cable’s electrical properties; the outer insulation uses irradiation cross-linked halogen-free, low-smoke, flame-retardant polyolefin insulation material to improve the cable’s mechanical properties. In case of fire, the flame on the cable will extinguish automatically to prevent the spread of fire. During combustion, the cable will not release toxic gases and will reduce smoke emission

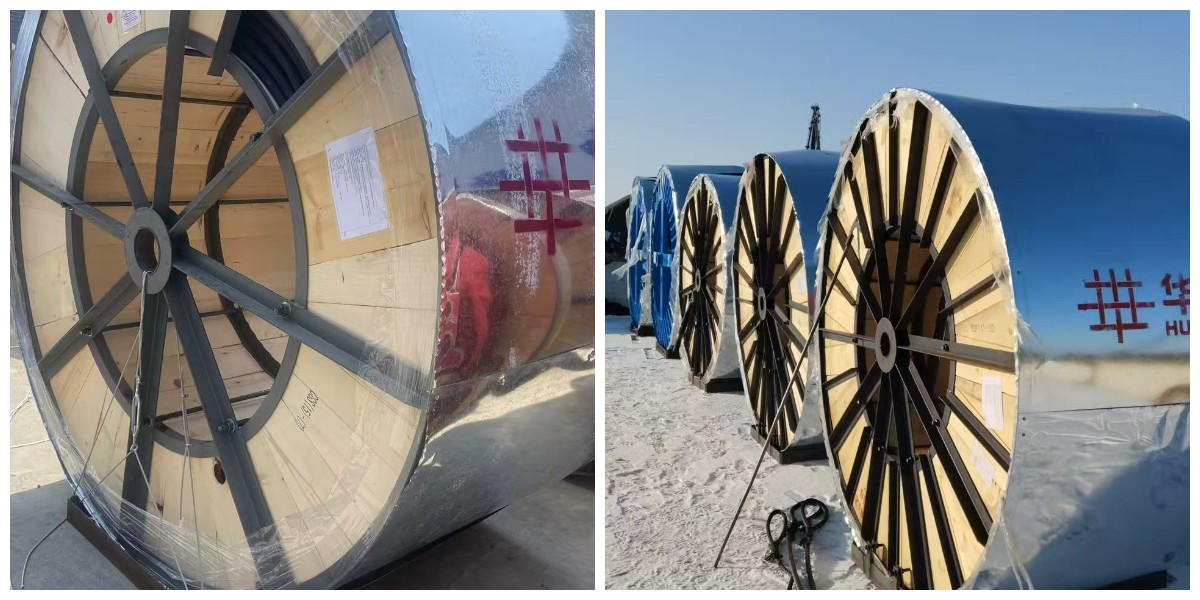

Packaging and Shipping
