Long life power cable

Extremely long life: Using radiation cross-linking technology, the temperature resistance reaches 125℃ and the life span exceeds 70 years;

Safety and environmental protection: Halogen-free and low-smoke design, combustion transmittance>60%, PH value ≥4.3, non-toxic and non-corrosive;

High reliability: Three-dimensional mesh molecular structure, stable insulation resistance, and 50% improvement in anti-aging performance;

Strong current carrying capacity: The temperature resistance level is increased to 90℃~125℃, and the current carrying capacity is 30% higher than that of ordinary cables;

Widely applicable: Applicable to buildings, power grids and other scenarios, and designed with the same life span as buildings.

Contact Now E-Mail Telephone

Product Details

Product Description

This product is suitable for double-layer co-extruded insulated irradiated cross-linked halogen-free low-smoke flame-retardant and fire-resistant wires with a rated voltage of 450/750 V and below in industrial and civil buildings. Materials such as cross-linked polyethylene (XLPE) or halogen-free low-smoke (LSZH) that have undergone special processing not only possess excellent electrical insulation performance but also can effectively resist flame, reduce smoke and harmful gas emissions. The protective layer provides additional protection, which can resist physical damage, chemical corrosion and environmental factors, ensuring the stable operation of the wires under complex working conditions.

Executive Standard

JG/T 441-2014: Double-Layer Co-Extruded Insulated Irradiated Cross-Linked Halogen-Free Low-Smoke Flame-Retardant Wires with Rated Voltage of 450/750 V and Below

Long life power cable

Product Models

Model	Name
WDZ (A, B, C) - GYJS (F)	Halogen-Free Low-Smoke Flame-Retardant (Class A, B, C) Wires with Rated Voltage of 450/750 V, Double-Layer Co-Extruded Insulation and Irradiated Cross-Linking
WDZ (A, B, C) N - GYJS (F)	Halogen-Free Low-Smoke Flame-Retardant and Fire-Resistant (Class A, B, C) Wires with Rated Voltage of 450/750 V, Double-Layer Co-Extruded Insulation and Irradiated Cross-Linking

Product Specifications

Cross-Sectional Area (mm²)	Model	Number of Cores
0.5 - 300	WDZ (A, B, C) - GYJS (F)	1
0.5 - 300	WDZ (A, B, C) N - GYJS (F)	1

Product Features

The service life can reach 81.3 years at 70℃ and 76.2 years at 85℃.

The product has the characteristics of halogen-free, low smoke, flame retardancy, fire resistance, non-toxicity, long service life, high operating temperature and large current-carrying capacity.

The low-smoke performance of the cable meets the requirement of light transmittance ≥ 60%.

The halogen-free performance of the cable meets the requirements of pH ≥ 4.3, conductivity ≤ 10 μS/mm, toxicity index ≤ 0.5% and fluorine content ≤ 0.1%.

The double-layer co-extrusion technology is adopted. The inner insulation uses irradiated cross-linked polyethylene to enhance the electrical performance of the wire, and the outer insulation uses irradiated cross-linked halogen-free low-smoke flame-retardant polyolefin insulation material to improve the mechanical performance of the wire. In case of fire, the fire on the wire will extinguish automatically, preventing the spread of the fire. When burning, the wire will not release toxic gases and will reduce smoke emission.

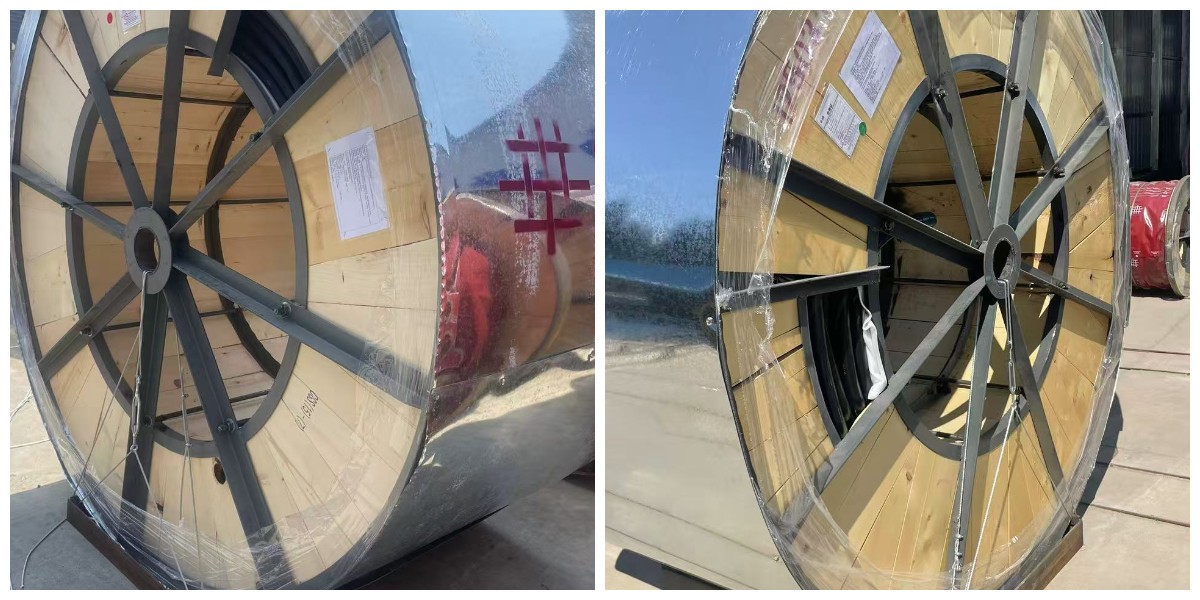

Packaging and Shipping
