Automotive Wire
The conductor is made of soft copper wire twisted according to the requirements of B-type conductor. It has a small outer diameter and light weight, which is convenient for wiring in a narrow space. The insulation layer uses a special thin-walled polyvinyl chloride, which is oil-resistant, acid-resistant, alkali-resistant, moisture-proof, and can withstand temperatures from -40℃ to 105℃. It has high insulation resistance, good mechanical strength, and is easy to cut and strip, making it suitable for connecting vehicles and mobile equipment.
Product Description
The conductor is made of stranded multi-strand bare copper wires, and the insulation is thin-wall polyvinyl chloride (PVC) specially designed for automotive wires. The color marking is available in single-color or two-color options, and various colors can be selected according to customer requirements. It is mainly used for electrical and instrument connections in automobiles, motorcycles, and other vehicles, as well as for mobile connections in equipment such as motors, electric tools, and instruments. It features excellent mechanical properties such as high-temperature resistance and scratch resistance.
Executive Standard
DIN 72551: Road Vehicles — Low-Voltage Cables — Part 6: Single-Core Unshielded Thin-Wall PVC Insulated Low-Voltage Cables: Dimensions, Materials and Marking
Technical Parameters
Cross - sectional Area (mm²) | Number of Conductor Strands | Maximum Diameter of Single Conductor Strand (mm) | Maximum Cable Outer Diameter (mm) | Maximum DC Resistance of Conductor at 20°C (Ω/km) |
0.22 | 7 | 0.21 | 1.2 | 84.8 |
0.35 | 7 | 0.26 | 1.3 | 52.0 |
0.5 | 19 | 0.19 | 1.6 | 37.1 |
0.75 | 19 | 0.23 | 1.9 | 24.7 |
1.0 | 19 | 0.26 | 2.1 | 18.5 |
1.5 | 19 | 0.32 | 2.4 | 12.7 |
2.5 | 19 | 0.41 | 3.0 | 7.6 |
Product Characteristics
1. Operating temperature range: -40℃～105℃
2. Conductor: Multi-strand bare copper wire or tinned copper stranded wire
3. The cable has flame-retardant, oil-resistant, low-temperature-resistant, and high-temperature-resistant properties.

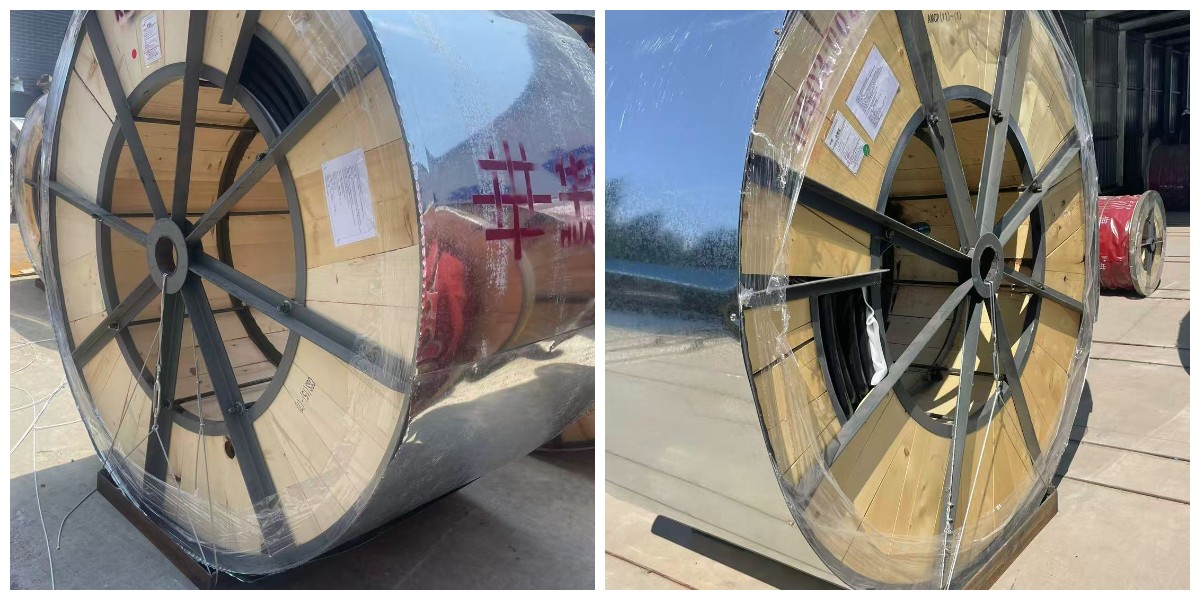

Product packaging
After-sales service
Our products are manufactured in strict accordance with the ISO quality management system, ensuring 100% product quality. We offer a two-year warranty (subject to project requirements). If any non-human-caused quality issues arise during the warranty period, we guarantee a 30-minute response. We will establish a dedicated after-sales service team for this project, providing specialized pre-sales, in-sales, and post-sales support to ensure optimal service.
