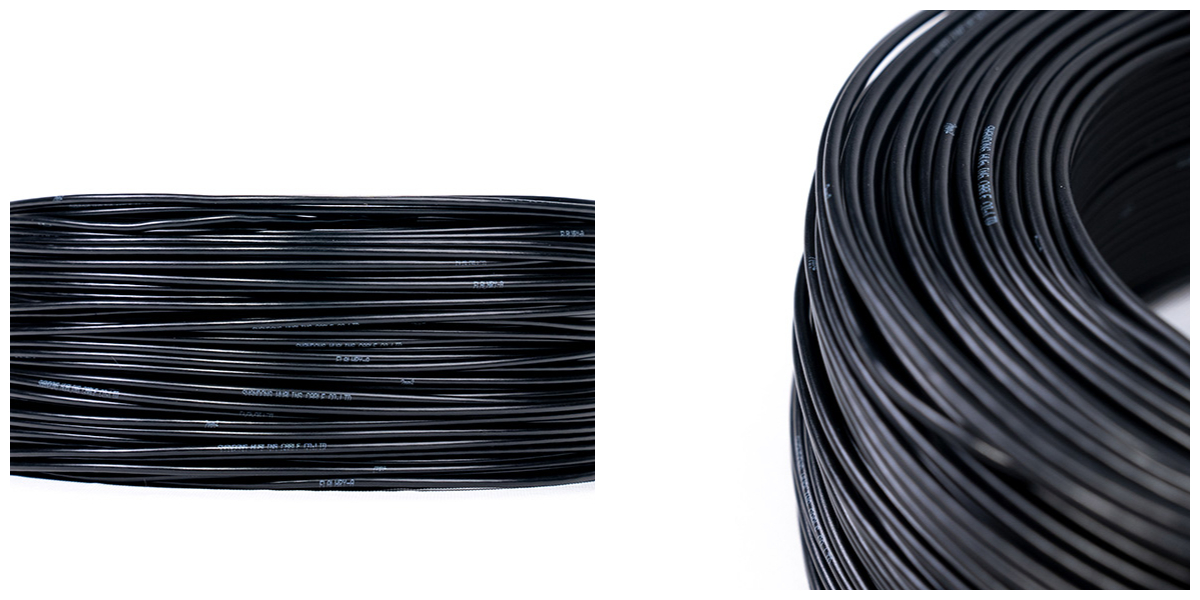

German Standard Automotive Line
The thin-wall design is lightweight and space-saving, suitable for compact wiring scenarios such as automobiles. The PVC insulation layer is oil-resistant and anti-aging, and remains flexible at low temperatures. The conductivity is stable, the current carrying capacity is adapted to low-voltage requirements, meets strict German standards, and is safe and reliable. It is easy to install and has a moderate cost. It is widely used in automotive internal wiring harnesses to ensure efficient circuit operation.
Product Description
FLRY-A is a type of thin-wall low-voltage wire for automobiles. Its insulation material is polyvinyl chloride, and the conductor is bare copper or tinned copper. It is suitable for low-voltage wires in automotive internal electrical systems as well as those in motorcycles and other motor vehicles, such as starting, charging, lighting, signal, and instrument panel circuits. It has excellent mechanical properties such as high temperature resistance and scratch resistance.
Executive Standard
DIN 72551: Road Vehicles — Low-Voltage Cables Part 6: Single-Core Unshielded Thin-Wall PVC Insulated Low-Voltage Cables — Dimensions, Materials and Markings
Technical Parameters
Cross - sectional Area (mm²) | Number of Conductor Strands | Maximum Diameter of Single Conductor Strand (mm) | Maximum Cable Outer Diameter (mm) | Maximum DC Resistance of Conductor at 20°C (Ω/km) |
0.22 | 7 | 0.21 | 1.2 | 84.8 |
0.35 | 7 | 0.26 | 1.3 | 52.0 |
0.5 | 19 | 0.19 | 1.6 | 37.1 |
0.75 | 19 | 0.23 | 1.9 | 24.7 |
1.0 | 19 | 0.26 | 2.1 | 18.5 |
1.5 | 19 | 0.32 | 2.4 | 12.7 |
2.5 | 19 | 0.41 | 3.0 | 7.6 |
Product Features
1. Operating temperature: -40℃～105℃
2. Conductor: Multi-strand bare copper wire or tinned copper stranded wire
3. The cable has flame retardancy, oil resistance, low temperature resistance, high temperature resistance and other properties.

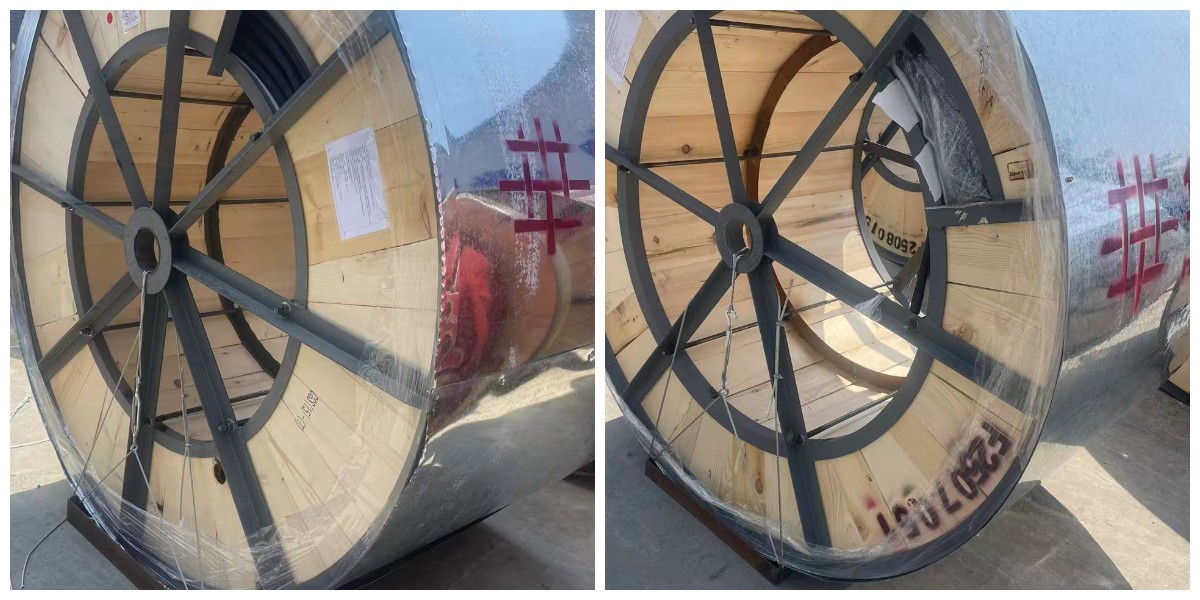

Product packaging
After-sales service
Our products are manufactured in strict accordance with the ISO quality management system, ensuring 100% product quality. We offer a two-year warranty (subject to project requirements). If any non-human-caused quality issues arise during the warranty period, we guarantee a 30-minute response. We will establish a dedicated after-sales service team for this project, providing specialized pre-sales, in-sales, and post-sales support to ensure optimal service.
