Thin-walled Automotive Wires
Thin-walled high and low-temperature resistant automotive wires have significant advantages. Its insulation layer is thin and the outer diameter of the cable is small, which can save the wiring space inside the vehicle and reduce the overall weight of the vehicle. It can operate stably within a wide temperature range of -40℃ to 150℃, is resistant to acids and alkalis, oil stains, and wear, and has excellent current-carrying capacity, providing stable and reliable power transmission for automotive electrical systems.
1.Product Description
Thin-walled Automotive Wires offer numerous performance advantages, making them ideal for modern vehicle applications. With a slim insulation layer and reduced overall cable diameter, these wires help optimize internal vehicle space and contribute to overall weight reduction. They are engineered to perform reliably across a broad temperature range from -40℃ to 150℃. Additionally, they exhibit strong resistance to acids, alkalis, oils, and abrasion. Thanks to their excellent current-carrying capability, Thin-walled Automotive Wires ensure stable and efficient power delivery throughout the vehicle's electrical system.
2. Implement standards
Enterprise Standard "Wires and Cables for Automobiles"
3. Scope of implementation
The internal connection wires of automobiles have excellent mechanical properties such as high and low temperature resistance and scratch resistance.
4. Technical parameters
Cross-sectional area | Number of conductor strands | The maximum diameter of a single conductor filament | Maximum outer diameter of the cable | The maximum direct current resistance of the conductor at 20℃ |
mm2 | Number | mm | mm | Ω/km |
0.35 | 12 | 0.21 | 1.4 | 52.0 |
0.5 | 16 | 0.21 | 1.6 | 37.1 |
0.75 | 24 | 0.21 | 1.9 | 24.7 |
1.0 | 32 | 0.21 | 2.1 | 18.5 |
1.5 | 30 | 0.26 | 2.4 | 12.7 |
2.5 | 50 | 0.26 | 3.0 | 7.6 |
4.0 | 56 | 0.31 | 3.7 | 4.7 |
6.0 | 84 | 0.31 | 4.3 | 3.1 |

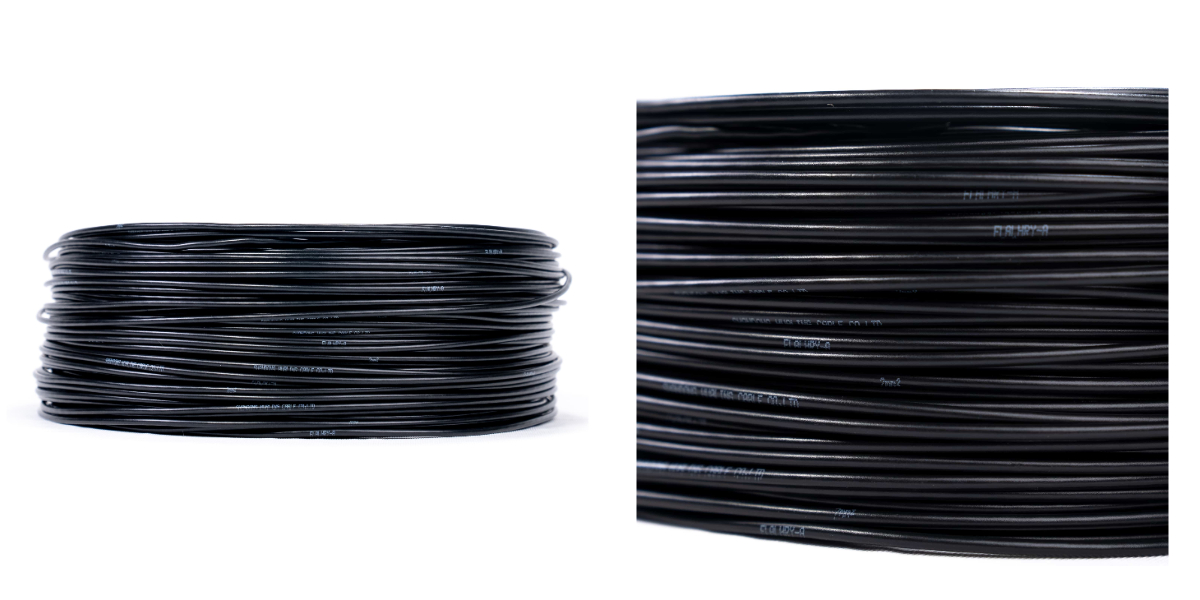

5. Pictures
6. Usage features
(1) Operating temperature: -40℃ to +105℃
(2) The wire is oil-resistant, wear-resistant and low-temperature resistant.
(3) The wire is non-flammable.
