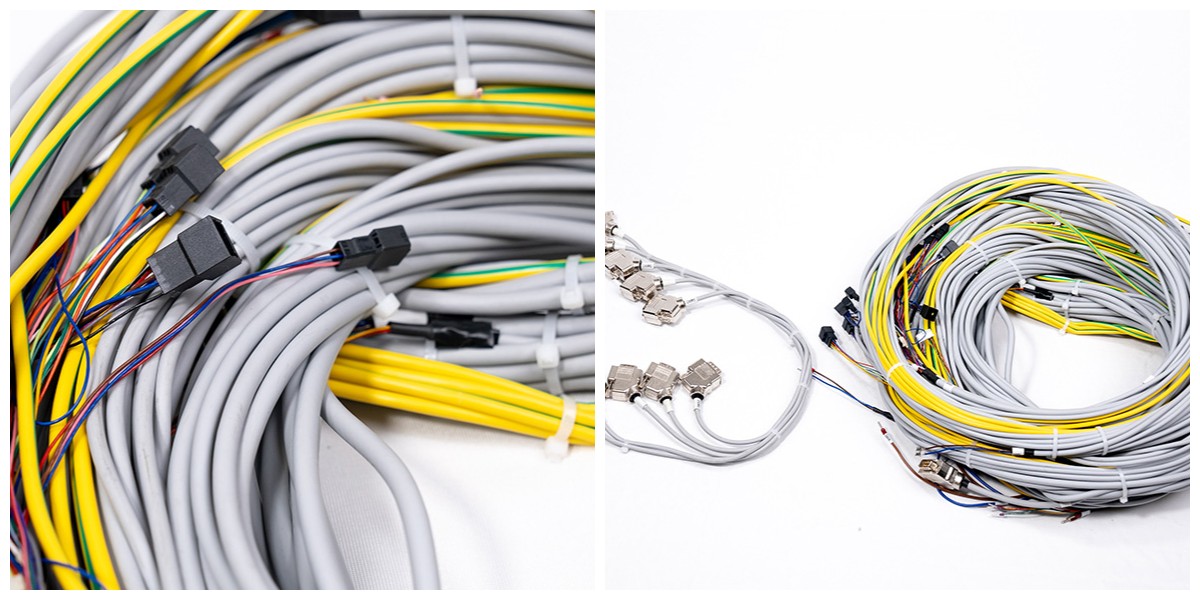

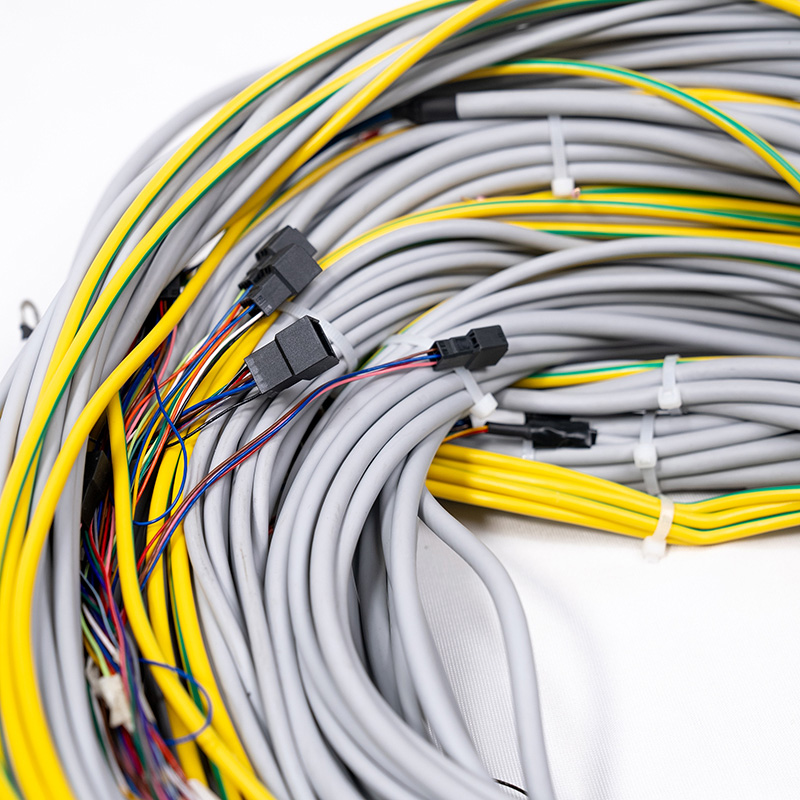

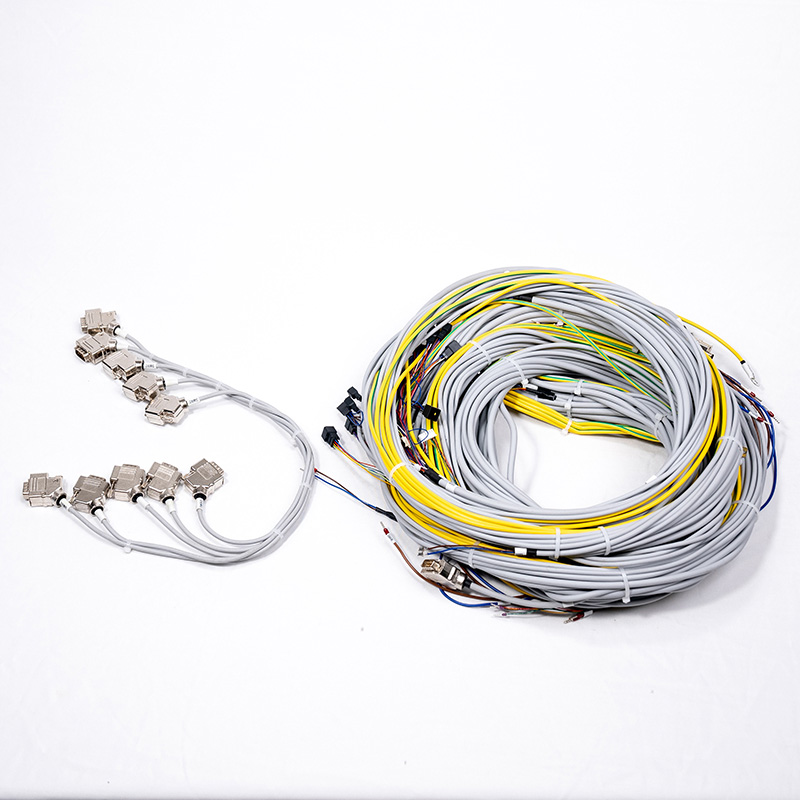

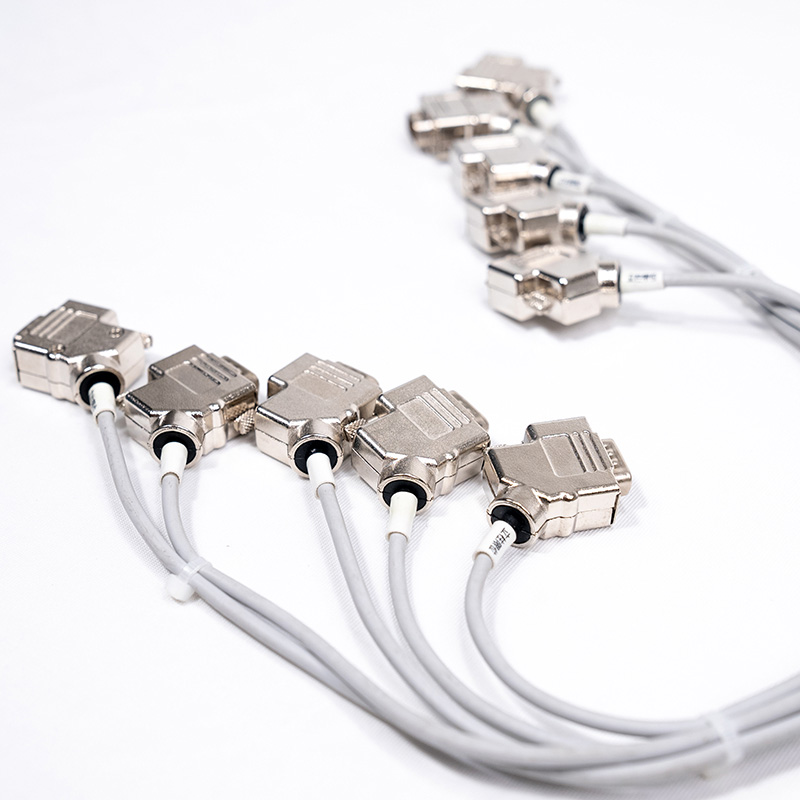

Robot Cables
The conductor is composed of multiple strands of ultra-fine twisted oxygen-free copper wires, matched with special modified insulation materials, which can withstand bending for more than 5 million times and adapt to high-frequency movement. The tinned copper wire braided shield has a shielding rate of ≥95% and is effectively resistant to electromagnetic interference. Its PUR sheath is wear-resistant and oil-resistant, and can stably transmit signals in complex industrial environments.
Robot Cables
I. Product Description
A high-performance cable specially designed for robot systems, featuring excellent flexibility, wear resistance, and anti-interference capability.
High-quality conductor materials and a special insulating layer are used to ensure stable and reliable signal transmission. Meanwhile, robot cables also have properties such as oil resistance and acid-alkali resistance, enabling them to be used for a long time in harsh industrial environments.
These cables are widely applied in industrial robots, service robots, and automated equipment, and are key components for ensuring the normal operation of robots.
II. Executive Standard
Flexible Cables for Robots (T/CECA37-2020)
III. Technical Parameters
Product Specification | Product Code | Conductor DC Resistance (Max Ω/km@20℃) | Insulation Diameter (ømm) | Reference Outer Diameter (ømm) |
2×0.5mm² (20AWG) | HLFL-ROP302.02.05.PUR | 37.4 | 1.65 | 5.0 |
3×0.5mm² (20AWG) | HLFL-ROP302.03.05.PUR | 37.4 | 1.65 | 5.4 |
4×0.5mm² (20AWG) | HLFL-ROP302.04.05.PUR | 37.4 | 1.65 | 5.8 |
6×0.5mm² (20AWG) | HLFL-ROP302.06.05.PUR | 37.4 | 1.65 | 6.9 |
8×0.5mm² (20AWG) | HLFL-ROP302.08.05.PUR | 37.4 | 1.65 | 8.2 |
9×0.5mm² (20AWG) | HLFL-ROP302.09.05.PUR | 37.4 | 1.65 | 9.0 |
12×0.5mm² (20AWG) | HLFL-ROP302.12.05.PUR | 37.4 | 1.65 | 10.7 |
3×0.75mm² (19AWG) | HLFL-ROP302.03.075.PUR | 29.5 | 1.90 | 5.9 |
4×0.75mm² (19AWG) | HLFL-ROP302.04.075.PUR | 29.5 | 1.90 | 6.4 |
6×0.75mm² (19AWG) | HLFL-ROP302.06.075.PUR | 29.5 | 1.90 | 7.6 |
8×0.75mm² (19AWG) | HLFL-ROP302.08.075.PUR | 29.5 | 1.90 | 9.0 |
9×0.75mm² (19AWG) | HLFL-ROP302.09.075.PUR | 29.5 | 1.90 | 10.0 |
12×0.75mm² (19AWG) | HLFL-ROP302.12.075.PUR | 29.5 | 1.90 | 12.2 |
3×1.0mm² (18AWG) | HLFL-ROP302.03.10.PUR | 23.5 | 2.2 | 6.6 |
4×1.0mm² (18AWG) | HLFL-ROP302.04.10.PUR | 23.5 | 2.2 | 7.3 |
6×1.0mm² (18AWG) | HLFL-ROP302.06.10.PUR | 23.5 | 2.2 | 8.6 |
8×1.0mm² (18AWG) | HLFL-ROP302.08.10.PUR | 23.5 | 2.2 | 10.2 |
9×1.0mm² (18AWG) | HLFL-ROP302.09.10.PUR | 23.5 | 2.2 | 11.3 |
12×1.0mm² (18AWG) | HLFL-ROP302.12.10.PUR | 23.5 | 2.2 | 14.0 |
3×1.5mm² (16AWG) | HLFL-ROP302.03.15.PUR | 14.6 | 2.5 | 7.2 |
4×1.5mm² (16AWG) | HLFL-ROP302.04.15.PUR | 14.6 | 2.5 | 8.0 |
6×1.5mm² (16AWG) | HLFL-ROP302.06.15.PUR | 14.6 | 2.5 | 9.5 |
IV. Product Features
Towline Service Life: More than 20 million bending cycles.
Special Properties:
· High flexibility, wear resistance, drag resistance, and oil resistance.
· Torsion-resistant, with a torsion range of ±180° per 0.5 meters of cable length.
Operating Voltage: 300V
· Minimum Bending Radius
· Mobile Installation: 7.5×D (D refers to the outer diameter of the cable)
· Fixed Installation: 4×D (D refers to the outer diameter of the cable)
Operating Temperature:
· Mobile Installation: -40℃~80℃
· Fixed Installation: -40℃~80℃
· Flame Retardant Performance: Compliant with IEC60332-1
· Hazardous Substance-Free: Compliant with ROHS
