Coal Mine Mobile Flexible Cable

1. Flame retardant performance: The cable adopts special design and special flame retardant materials, has excellent flame retardant performance, and ensures safety in flammable environments such as underground.

2. Soft and easy to lay: The cable conductor adopts a soft structure, coupled with the inherent characteristics of rubber insulation and sheath materials, the cable has good softness, which is convenient for underground installation and use.

3. High drop and vertical laying: Due to the characteristics of rubber insulation and rubber sheath materials, the cable is suitable for high drop and vertical laying, meeting the laying requirements of complex environments in coal mines.

4. Heat and cold resistance: The cable has heat radiation resistance and cold resistance, can maintain stable electrical performance in high temperature (high cold) environment, outstanding anti-aging performance, and long service life.

5. Stable electrical performance: The electrical performance of the cable is stable, the rated operating temperature of the conductor is 65℃ (some products can reach 90℃), the maximum temperature of the conductor during short circuit shall not exceed 250℃ (the longest duration shall not exceed 5 seconds), and it is suitable for various harsh underground environments.

Contact Now E-Mail Telephone

Product Details

Product Description

This cable is part of the mining rubber-sheathed flexible cable series. It is suitable for power connection of coal mine mobile coal mining equipment and other devices with a rated voltage of 0.66/1.14kV and below, and can transmit electrical energy in the complex underground environment of coal mines.

Executive Standards

MT818.5-2009 Part 5: Mobile Flexible Cables with Rated Voltage of 0.66/1.14kV and Below

MT818.6-2009 Mining Cables - Part 6: Mobile Metal-Shielded Monitoring Flexible Cables with Rated Voltage of 8.7/10kV and Below

MT818.7-2009 Mining Cables - Part 7: Mobile Shielded Flexible Cables with Rated Voltage of 6/10kV and Below

Mining Cables

Model Specifications

Common models include MCP-0.38/0.66, MCP-0.66/1.14, etc. In terms of specifications, there are various conductor combinations, such as 3×25+1×16, 3×50+1×16, 3×95+1×25. Among them, the numbers in the front represent the cross-sectional area of the power core, and the numbers in the back represent the cross-sectional area of the ground core, which can meet the power consumption needs of different equipment.

Product Characteristics

The rated voltages are 0.38/0.66 kV, 0.66/1.14 kV, 1.9/3.3 kV, 3.6/6 kV, 6/10 kV, and 8.7/10 kV respectively.

The minimum bending radius of the cable is 6 times the cable diameter.

The ground core of the cable should be well grounded.

Delivery length: The cable is delivered according to the length agreed by both parties, and the negative deviation of the length measurement shall not exceed 0.5%.

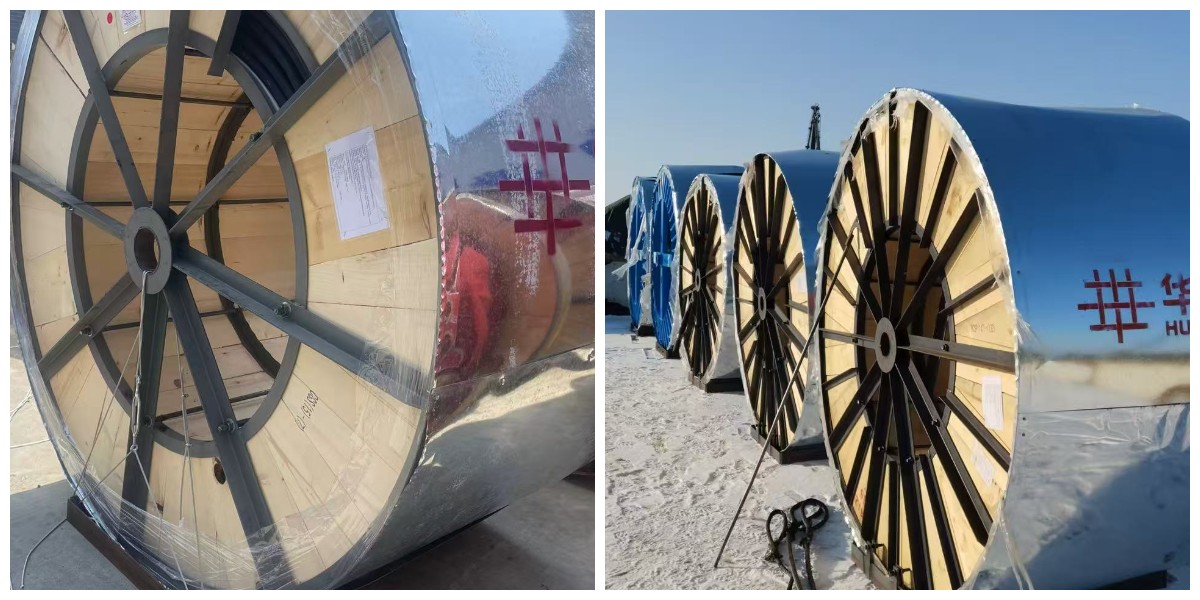

Packaging and Shipping
