Ship Control Cables
Safety and environmental protection: halogen-free design, no toxic gas during combustion (halogen acid gas <100PPM), light transmittance >60%;
Strong fire resistance: Passed IMO FTPC standard, maintain line integrity under 950℃ flame >3h;
Corrosion resistance: tinned copper conductor + polyolefin sheath, resistant to salt spray and oil pollution, suitable for wet environment of ships;
Stable transmission: 600V withstand voltage design, power frequency withstand voltage 1.5kV/5min without breakdown, anti-electromagnetic interference ≥60dB;
Long life: UV resistant and -40℃~90℃ temperature difference, life span exceeds 30 years.
Product Description
These cables are suitable for power, lighting, control, and communication transmission in various river and sea vessels as well as offshore or marine buildings, including marine power cables, marine control cables, marine communication cables, etc.
Technical Parameters
• The DC resistance of the conductor complies with the provisions of GB/T 3956.
• Burning test: It shall meet the single vertical burning test specified in IEC 60332-1, and the uncarbonized part shall be at least 50mm.
• Heat extension test: It shall comply with the provisions of IEC 60092-350. The maximum elongation of insulation and sheathing materials under load shall not exceed 175%, and the maximum permanent elongation after cooling shall not exceed 15%.
Product Characteristics
This product has high safety and reliability, and possesses excellent properties such as flame retardancy, halogen-free and low smoke, weather resistance, oil resistance, and wear resistance. It also features high temperature resistance grade, good electrical performance, long service life, and excellent mechanical properties. In addition, it has high wear resistance and excellent oil resistance.

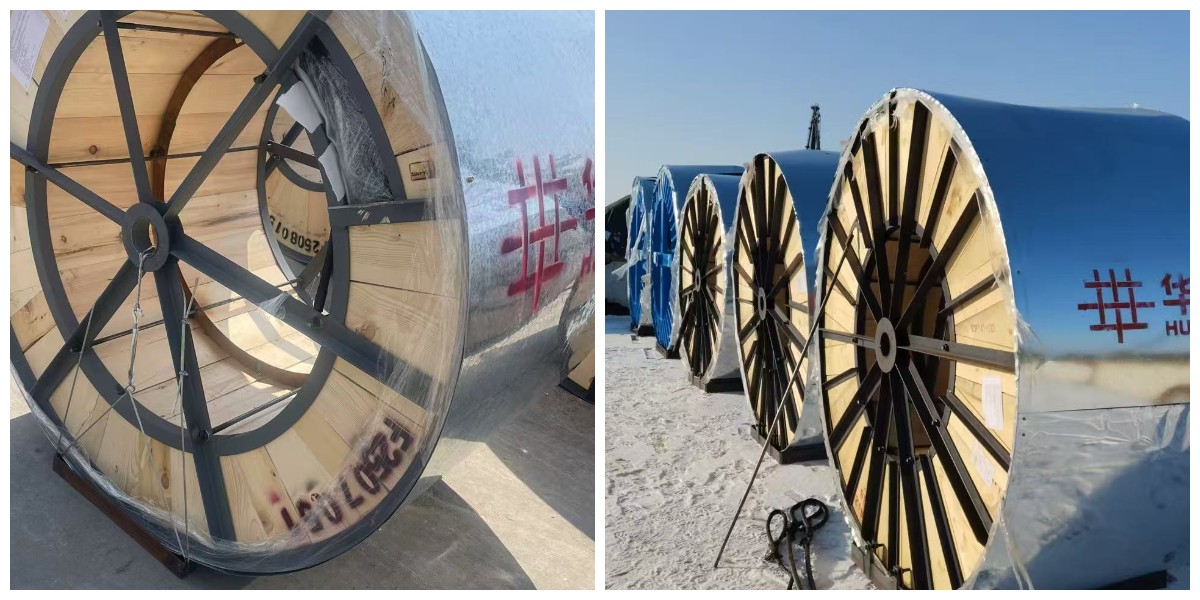

Packaging and Shipping
