Rubber Flexible Cables
Super strong and flexible: multi-strand finely twisted copper core + synthetic rubber sheath, bending radius ≤5D, adapt to frequent movement;
Durable and damage-resistant: oil-resistant/wear-resistant/UV-resistant rubber sheath, mechanical strength up to 10N/mm², life span over 8 years;
Safe and reliable: 750V withstand voltage grade, flame retardant performance passes GB/T 5013 standard (vertical burning ≤250mm);
Environmental adaptability: -40℃~85℃ stable operation, humid/dusty environment insulation resistance ≥10MΩ·km;
Economical and efficient: conductivity 98%IACS, energy saving 3%~5% compared to PVC cable.
Domestic: GB/T 5013 (IEC 60245-1~8), JB/T 8735.2~3
International: Complies with the IEC 60245 standard Rubber Insulated Cables with Rated Voltage of 450/750V and Below.
Fire performance: Some products can meet the flame retardant requirements specified in IEC 60332 - 1 - 2 or IEC 60332 - 3 - 22, comply with the fire resistance standard of IEC 60331 - 21, and meet the low smoke and halogen - free (LSHF) requirements of IEC 60754 - 1. When tested in accordance with IEC 61034, the light transmittance is > 60%, and the low corrosive gas emission also meets the relevant indicators in accordance with the IEC 60754 - 2 standard.
Product Models and Names
Product Name | Product Model |
Heat - Resistant Silicone Rubber Insulated Cable | 60245 IEC 03 (YG) |
Light - Duty Rubber Sheathed Flexible Cable | YQ |
Oil - Resistant and Weather - Resistant Light - Duty Rubber Sheathed Flexible Cable | YQW |
Medium - Duty Rubber Sheathed Flexible Cable | 60245 IEC 53 (YZ), YZ |
Oil - Resistant and Weather - Resistant Medium - Duty Rubber Sheathed Flexible Cable | 60245 IEC 57 (YZW), YZW |
Medium - Duty Rubber Sheathed Flat Flexible Cable | YZB |
Oil - Resistant and Weather - Resistant Medium - Duty Rubber Sheathed Flat Flexible Cable | YZBW |
Heavy - Duty Rubber Sheathed Flexible Cable | YC |
Oil - Resistant and Weather - Resistant Heavy - Duty Rubber Sheathed Flexible Cable | 60245 IEC 66 (YCW), YCW |
Rubber Insulated Braided Flexible Wire | RE |
Rubber Insulated Braided Twisted Flexible Wire | RES |
Rubber Insulated Rubber - Sheathed Total Braided Round Flexible Wire | REH |
Neoprene Rubber Sheathed Cable for Decorative Circuits | 60245 IEC 58 (YS) |
The insulation layer is made of high - quality rubber material, which has excellent flexibility and bending performance. The minimum bending radius is usually no more than 6 - 8 times the outer diameter of the cable, making it easy to lay in narrow spaces or complex paths.
Suitable for connecting low - voltage electrical equipment. It has high insulation resistance and low dielectric loss, which can ensure the stability of power transmission. In terms of temperature adaptability, the long - term operating temperature can reach 60 - 80℃, and it can withstand higher temperatures during short - term overload. Moreover, it is not easy to become brittle in low - temperature environments and can be used normally in environments of - 20℃ and above.
It has a high elongation rate, good wear resistance and tear resistance, and can resist mechanical damage during laying and use. In addition, some models also have certain oil - resistant and chemical corrosion - resistant properties, which can be used in industrial environments with mild oil pollution or chemical erosion to meet diverse technical application needs.

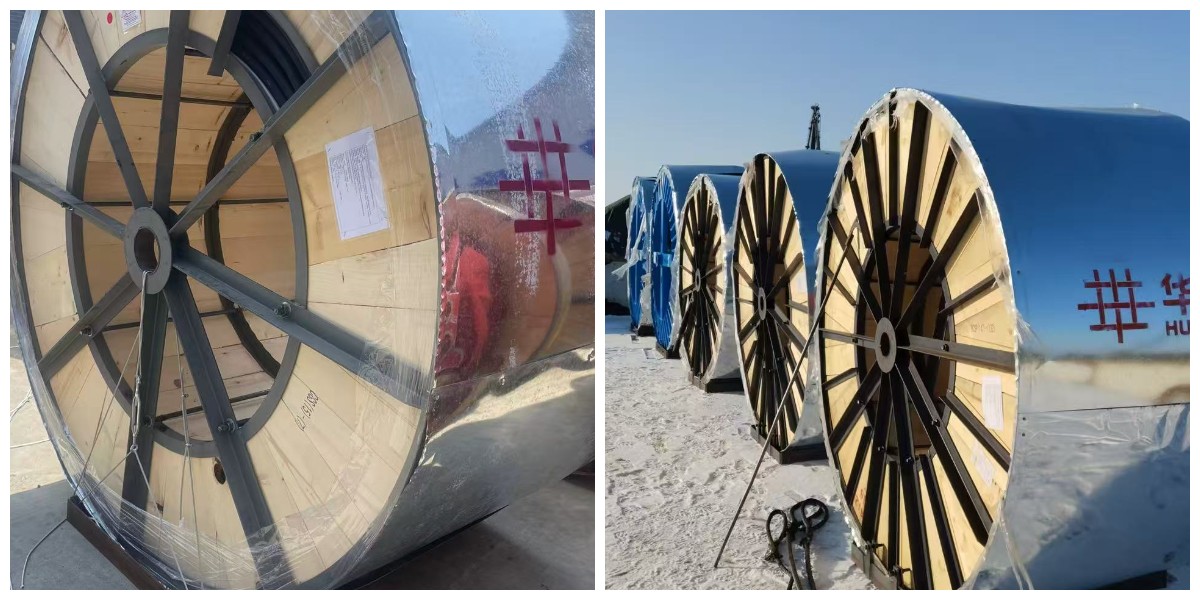

Packaging and Shipping
