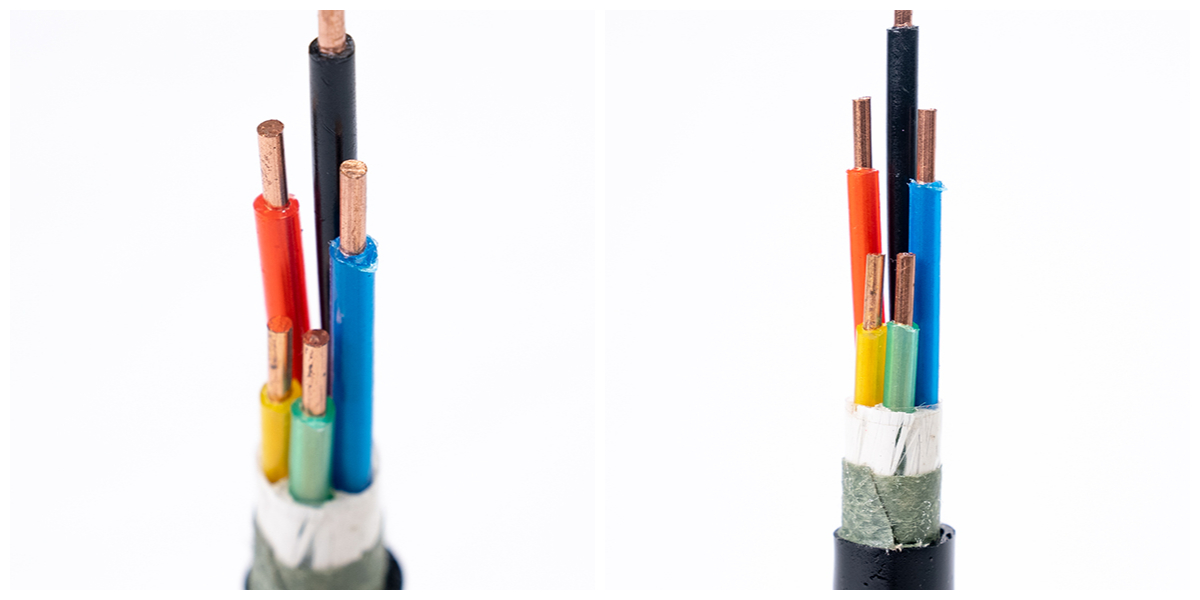

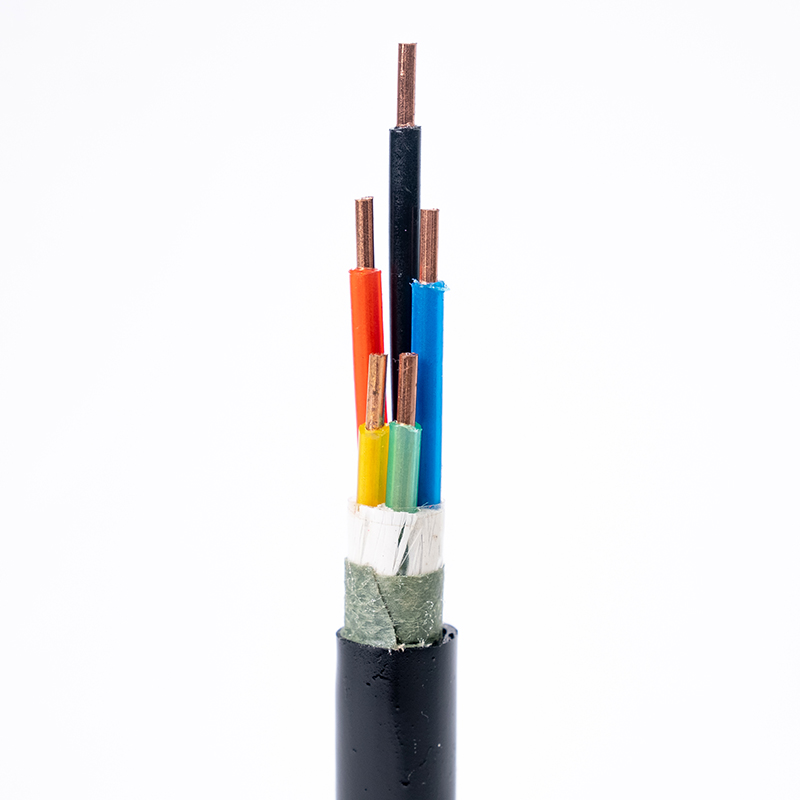

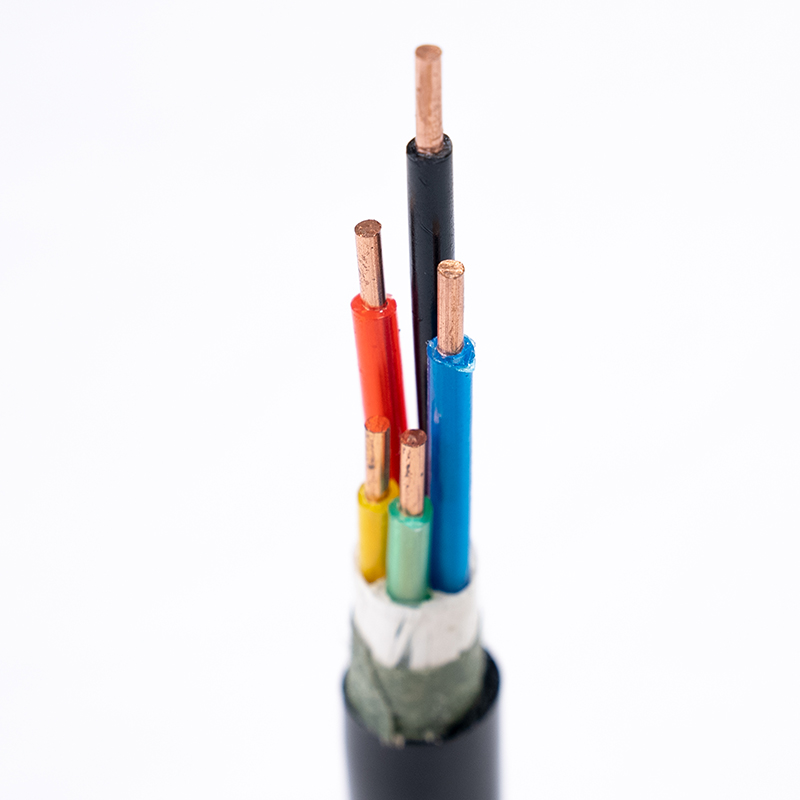

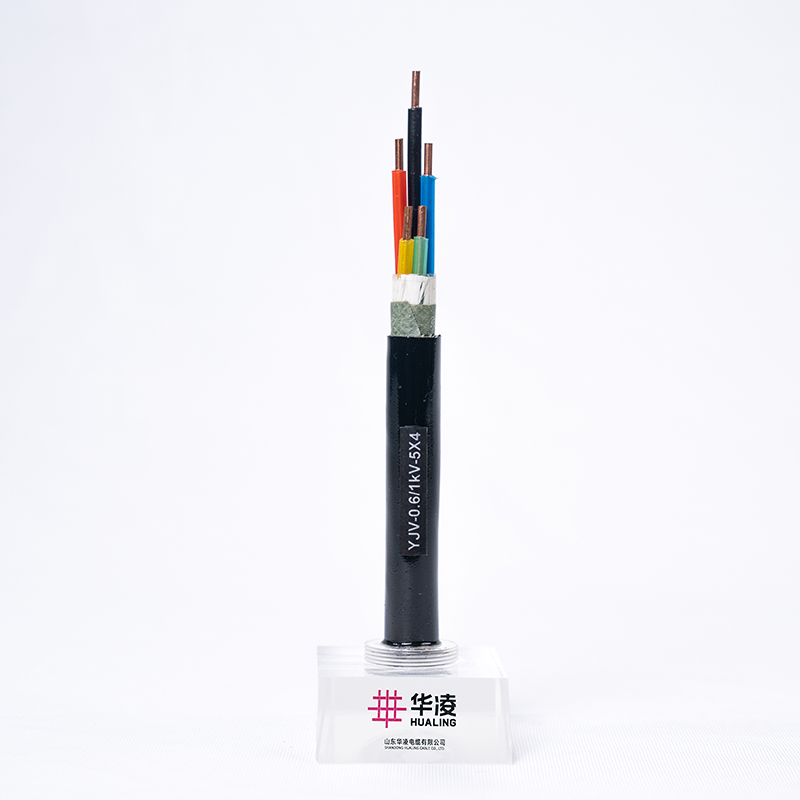

Highly Flexible Power Drag Chain Cable

The conductor is made of multiple strands of ultra-fine twisted oxygen-free copper wire, which has excellent conductivity and strong bendability. The special mixed elastomer sheath is waterproof, oil-proof, wear-resistant and weather-resistant. There is a special tensile reinforcement layer inside, which greatly improves the tensile resistance, with a bending life of more than 5 million times, suitable for complex industrial dynamic scenes.

Contact Now E-Mail Telephone

Product Details

Product Description

It is mainly used in equipment such as machine tools, robot system integration, and industrial automation, serving as a power transmission cable for long-term reciprocating movement in drag chains.

Design Basis

CRIA 0003-2016 Special Cables for Industrial Robots

TICW 21 Flexible Cables for Industrial Robots

2 PfG 2577/08.16 Cable Usage Requirements for Robot Systems

Highly Flexible Power Drag Chain Cable

Technical Parameters

Product No.	Product Specification	DC Resistance of Inner Conductor (Max.Ω/km@20°C)	Insulation Diameter (ømm)	Reference Outer Diameter (ømm)
HLFL-HOP30.02.05	2×0.5mm² (20AWG)	34.6	1.65	4.9
HLFL-HOP30.03.05	3×0.5mm² (20AWG)	34.6	1.65	5.4
HLFL-HOP30.03.05	-	34.6	1.65	5.8
HLFL-HOP30.04.05	4×0.5mm² (20AWG)	34.6	1.65	6.2
HLFL-HOP30.05.05	5×0.5mm² (20AWG)	34.6	-	6.9
HLFL-HOP30.06.05	6×0.5mm² (20AWG)	34.6	1.65	-
HLFL-HOP30.02.075	2×0.75mm² (19AWG)	27.4	1.90	5.4
HLFL-HOP30.03.075	3×0.75mm² (19AWG)	27.4	1.90	5.9
HLFL-HOP30.03.075	-	27.4	1.90	6.4
HLFL-HOP30.04.075	4×0.75mm² (19AWG)	27.4	1.90	6.8
HLFL-HOP30.05.075	5×0.75mm² (19AWG)	27.4	-	-
HLFL-HOP30.06.075	6×0.75mm² (19AWG)	27.4	1.90	7.4
-	2×1.0mm² (18AWG)	21.8	2.2	6.0
HLFL-HOP30.02.10	-	21.8	2.2	6.6
HLFL-HOP30.03.10	3×1.0mm² (18AWG)	21.8	2.2	7.3
HLFL-HOP30.04.10	4×1.0mm² (18AWG)	21.8	2.2	7.7
HLFL-HOP30.05.10	5×1.0mm² (18AWG)	21.8	-	-
HLFL-HOP30.06.10	6×1.0mm² (18AWG)	21.8	2.2	8.6
HLFL-HOP30.02.15	2×1.5mm² (16AWG)	13.7	2.5	6.7
HLFL-HOP30.03.15	3×1.5mm² (16AWG)	13.7	2.5	7.2
HLFL-HOP30.04.15	4×1.5mm² (16AWG)	13.7	2.5	8.0
HLFL-HOP30.05.15	5×1.5mm² (16AWG)	13.7	2.5	8.7
HLFL-HOP30.06.15	6×1.5mm² (16AWG)	13.7	2.5	9.5
HLFL-HOP30.02.25	2×2.5mm² (14AWG)	8.62	3.0	7.7
HLFL-HOP30.03.25	3×2.5mm² (14AWG)	8.62	3.0	8.3
HLFL-HOP30.04.25	4×2.5mm² (14AWG)	8.62	3.0	9.2
HLFL-HOP30.05.25	5×2.5mm² (14AWG)	8.62	3.0	10.2
HLFL-HOP30.03.40	3×4.0mm² (12AWG)	5.43	3.8	10.3
HLFL-HOP30.04.40	4×4.0mm² (12AWG)	5.43	3.8	11.7
HLFL-HOP30.05.40	5×4.0mm² (12AWG)	5.43	3.8	13.0

The colors of 4-core cables can also be selected as red, white, black, and yellow/green. Multi-core cables can be available in different colors, referring to DIN47100.

It is not limited to the specifications listed above; other specifications can be customized according to customer requirements.

Technical Parameters

Product Model: HLFL-HOP30

Product Performance:

Inner Conductor: VDE 0295 Class 6 / IEC 60228 Class 6 multi-strand stranded bare copper conductor

Insulation: Special elastomer material

Insulation Marking: Black insulated wire cores with digital numbering [1, 2, 3...]; Cables with 3 cores or more are equipped with 1 yellow/green grounding protection core wire (Note 2)
