American Standard Automotive Wire
Its insulation is made of cross-linked polyethylene, which complies with SAE J1128 and other standards. Its long-term working temperature does not exceed 125°C, and it has good heat resistance. It is oil-resistant, cold-resistant, flame-retardant, wear-resistant, has good mechanical properties, can withstand large stress, is easy to cut and strip, and is easy to install. It performs well in automotive electrical systems.
3. Technical Parameters
American Wire Gauge (AWG) | Cross-Sectional Area (mm²) | Maximum DC Resistance at 20°C (Ω/km) | Insulation Thickness (mm) | Maximum Cable Outer Diameter (mm) |
20 | 0.5 | 34.6 | 0.58 | 2.40 |
18 | 0.8 | 21.8 | 0.58 | 2.50 |
16 | 1 | 13.7 | 0.58 | 2.90 |
14 | 2 | 8.62 | 0.58 | 3.20 |
12 | 3 | 5.43 | 0.66 | 3.80 |
10 | 5 | 3.41 | 0.79 | 4.70 |
8 | 8 | 2.16 | 0.94 | 6.00 |
4. Product Features
Operating temperature range: -40°C ~ 125°C
Conductor: Multi-strand bare copper wire or tinned copper stranded wire
The wire can withstand more than 10,000 scratch tests.
The cable has flame-retardant, oil-resistant, low-temperature-resistant and high-temperature-resistant properties.

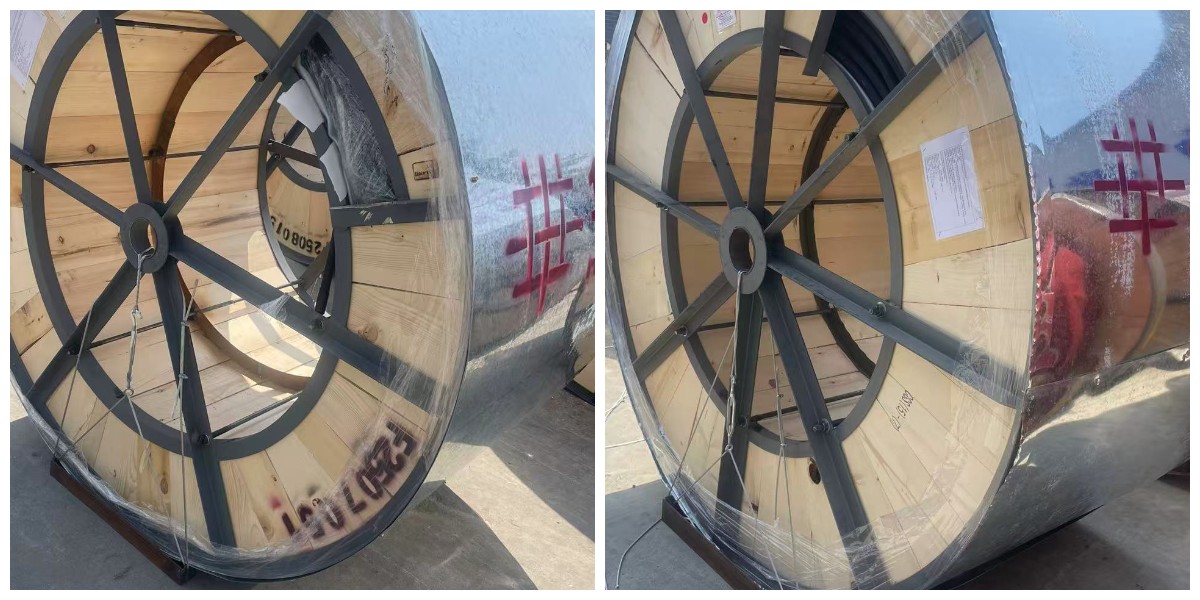

5.Packaging and Shipping
